Steel crimped wire mesh
1. Material:
There are many kinds of materials can be used as the materials of our steel crimped wore mesh products, such as low carbon steel wire, copper wire, nickel wire, stainless steel wire 301, 302, 304, 304L, 316, 316L, 321; iron wire, redrawing wire, annealed wire.
2. Weaving Methods:
The weaving method of steel crimped wire mesh is crimping prior to weaving. Intermediate crimp weave in two directions, lock crimp weave, flat top crimp weave, crimp weave in both directions, intermediate crimp weave in one direction.
3. Features:
Weaving with pre-crimped wire, offering strong structure, substantially woven, durable, uniform cell, heat-resisting, corrosion-resisting, abrasion-resisting.
4. Application:
Steel crimped wire mesh can be widely used as fence or filters in a lot of industries. Heavy Duty Crimped Wire Mesh mostly used as screen in mining, coal factory, construction and other industries. Some galvanized steel crimped wire mesh and stainless steel crimped wire mesh are for roasting of flour food and mea

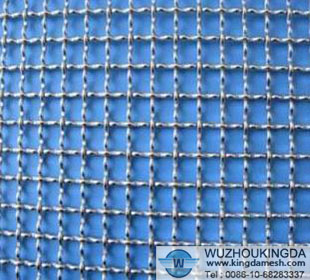

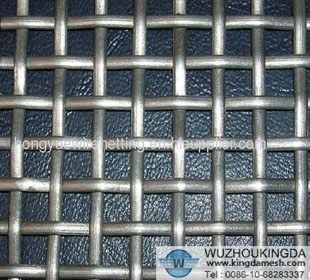

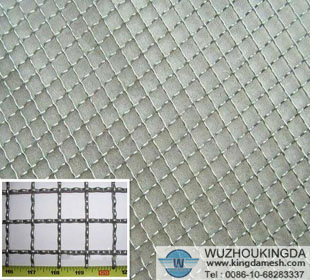

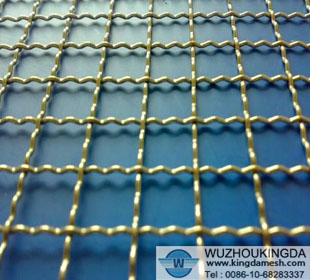

Steel-crimped-wire-mesh

5. Reference specifications of steel crimped wire mesh:

Wire Diameter (mm)	Aperture (mm)	Mesh	Length (M)	Weight (Kg)
4.0	40.0	0.58	30	142
4.0	30.0	0.75	30	182
4.0	25.0	0.87	30	213
3.2	25.0	0.87	30	141
3.2	20.0	1.10	30	169
2.6	20.0	1.12	30	116
2.6	18.0	1.23	30	127
2.6	15.0	1.44	30	173
2.0	15.0	1.49	30	92
2.0	12.0	1.80	30	110
2.0	10.0	2.12	30	127
2.0	8.00	2.54	30	155
1.8	7.00	3.00	30	149
1.8	6.00	3.25	30	161
1.6	7.00	3.00	30	117
1.6	6.00	3.35	30	131
1.6	5.00	3.85	30	150
1.6	4.00	4.50	30	176
1.6	3.00	5.50	30	215
1.4	6.00	3.50	30	105
1.4	5.00	4.00	30	120
1.4	4.00	4.70	30	140
1.2	8.00	2.70	30	59
1.2	7.00	3.10	30	68
1.2	6.00	3.50	30	77
1.2	5.00	4.00	30	88
1.2	4.00	4.90	30	99
1.2	3.00	6.00	30	132

We also can provide other specification according to the clients' requirements. Meanwhile, we accept the business of processing supply material.
