2.0mm hole perforated mesh,Punching hole mesh,Perforated metal sheet-Wuzhou Kingda Wire Cloth Co. Ltd

2mm hole perforated mesh

Category:Perforated Metal Mesh
Material:galvanized sheet,stainless steel sheet
Properties:perforated mesh
Application:widely used in mining, chemistry, architecture,.

tags:
2.0mm hole,perforated mesh,

Inquiry now

Send email

We highly appreciate your feedback. TEL: 0086-10-68220585 E-mail: sales@kingdamesh.com

Mesh Description
Mesh Specification
Relevant Picture
Recommend Products

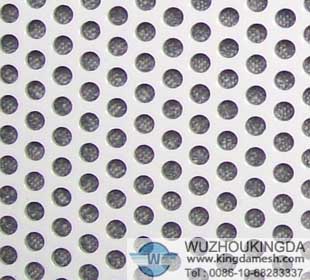

2.0mm hole perforated mesh
Material: Stainless steel, carbon steel, brass, aluminum, titanium, nickel, Al-Mg alloy.
Hole pattern: Decorative, Hexagonal, Round, Slotted, Square, fish, and some others. We could make holes according to our customers.
Punching hole mesh
Major Applications: Perforated metal sheet is widely used in mining, chemistry, architecture, Air and Oil Filters, Screening process for Grain, Drying, Furniture, Hammer Mills, etc.
Weave: produce through pressing and punch.
Surface treatment: galvanized/PE/PVC in many colors.

Plates	Net thickness (mm)	Aperture (mm)	Pitch (mm)	Net Width (m)	Net Long (m)	Punching rate (%)	weight (kg/m2)
Volume Plate	0.2	6	2	1	20	44	0.88
	0.35	5	4	1	20	24	2
	0.45	6	3	1	20	35	2.5
	0.8	3	3	1	20	19.6	3
Flat	0.5	1	1	1	2	19.6	3.14
	0.8	1.5	1.5	1	2	19.6	5
	1.5	2	2	1	2	19.6	9.4
	3	5	16	1	2	19.6	18.8
Stainless steel plate	0.5	1	1	1	2	19.6	3.14
	0.8	1.5	1.5	1	2	19.6	5
	1	2	2	1	2	19.6	6.28
	2	5	16	1	2	19.6	6.28
Aluminum	0.5	1	1	1	2	19.6	1.08
	0.8	3	3	1	2	19.6	1.72
	1.5	2	2	1	2	19.6	3.24
	2	4	16	1	2	19.6	4.23
