Black perforated metal mesh

Category:Perforated Metal Mesh
Material:low carbon steel plate
Properties:resistant to acid, alkali, abrasion, pressure and bending.
Application:Widely used to civil construction, mechanical device protection

tags:
perforated metal mesh,perforated mesh,

Inquiry now

Send email

We highly appreciate your feedback. TEL: 0086-10-68220585 E-mail: sales@kingdamesh.com

Mesh Description
Mesh Specification

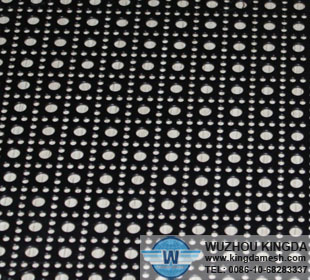

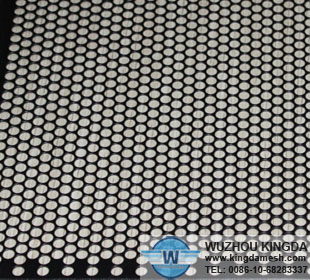

Relevant Picture
Recommend Products

Black perforated metal mesh
Material: low carbon steel plate
Surface treatment: powder coated or PVC coated into black color
Specifications of the black perforated metal mesh:
Hole Size: 0.20MM-200MM (limited panel size for holes from 0.2mm to 0.9MM)
Thickness: 0.05MM-8.00MM
Width x Length: 1.0M x 2.0M, 4Feet x 8Feet, and 4Feet x 10Feet or upon request
Hole Patterns including: Round; Rectangular hole; Square; Triangle; Diamond; Hexagonal; Cross; Slotted; and other patterns
Features of the black perforated metal mesh:
The black perforated metal mesh has the advantages of resistant to acid, alkali, abrasion, pressure and bending. The mesh surface is flat and artistic with high brightness.
Applications of the black perforated metal mesh:
Widely used to civil construction, mechanical device protection, handicraft manufacture, upscale sound heart cover, grain ventilates.
It also can be used in architectural, the road, and the bridge.

If you are interested, pls feel free to contact us. TEL: 0086-10-68283337. Email: service.wzjd@hotmail.com

Reference specifications of the black perforated metal mesh:

Specifications of the perforated metal mesh
material	thickness (mm)	Aperture (mm)	hole spacing (mm)	wide (m)	length (m)	Punching rate (%)	weight (kg/m2)
Coil sheet	0.2	6	2	1	20	44	0.88
	0.35	5	4	1	20	24	2
	0.45	6	3	1	20	35	2.5
	0.8	3	3	1	20	19.6	3
Flat sheet	0.5	1	1	1	2	19.6	3.14
	0.8	1.5	1.5	1	2	19.6	5
	1.5	2	2	1	2	19.6	9.4
	3	5	16	1	2	19.6	18.8
stainless metal plate	0.5	1	1	1	2	19.6	3.14
	0.8	1.5	1.5	1	2	19.6	5
	1	2	2	1	2	19.6	6.28
	2	5	16	1	2	19.6	6.28
aluminium plate	0.5	1	1	1	2	19.6	1.08
	0.8	3	3	1	2	19.6	1.72
	1.5	2	2	1	2	19.6	3.24
	2	4	16	1	2	19.6	4.23
