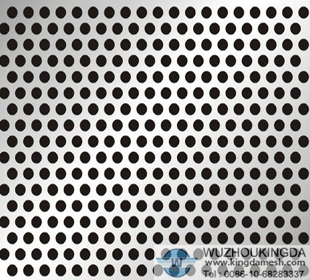

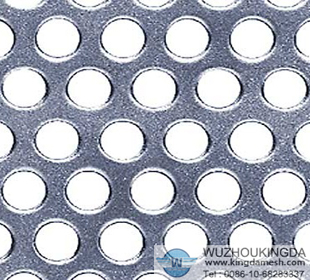

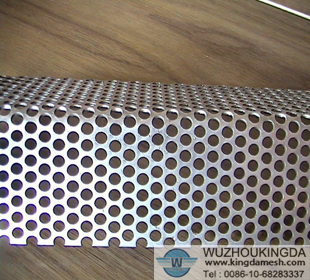

Perforated metal panel
1. Introduction: Perforated metal panel is metal that has a sequence of holes punch into with different sizes, gauges and material types. Perforated metal panel is also known as the perforated sheet, stamping plates, perforated screen, perforated metal sheets made through the metal stamping and punching through machinery. Sheet metal materials include steel, aluminum, stainless steel, bronze, brass, titanium, aluminum, polyethylene, and so on required as per applications.
2. Characteristics of Perforated metal panel: The surface is smooth, lubricity, beautiful, the usage is extensive.
3. Application of Perforated metal panel:
Perforated metal panel can be used in making of kitchenware such as fruit basket, food cover; besides, perforated metal panel widely used in automotive components, external decoration, balconies, staircases, windows and doors, roads and other outdoor products, and can be used to ceilings, panels, wall panels, interior walls and other interior decoration.

Reference specifications of Perforated metal panel:

Plate Material	Thickness of Metal (mm)	Hole Dia. (mm)	Pitch (mm)	Sheet Width (m)	Sheet Length (m)	Porosity (%)	Weight (kg/m2)
Rolling plate	0.2	6	2	1	20	44	0.88
	0.35	5	4	1	20	24	2
	0.45	6	3	1	20	35	2.5
	0.8	3	3	1	20	19.6	3
Flat plate	0.5	1	1	1	2	19.6	3.14
	0.55	1.1	2.2	1	2	22.67	3.411
	0.55	1.5	2.8	1	2	26.03	3.268
	0.8	1.5	1.5	1	2	19.6	5
	0.8	2.0	3.4	1	2	30.78	4.465
	1.5	2	2	1	2	19.6	9.4
	1.5	5.0	8.0	1	2	35.39	7.843
	3	5	16	1	2	19.6	18.8
Stainless steel plate	0.5	1	1	1	2	19.6	3.14
	0.8	1.5	1.5	1	2	19.6	5
	1	2	2	1	2	19.6	6.28
	2	5	16	1	2	19.6	6.28
Aluminum plate	0.5	1	1	1	2	19.6	1.08
	0.8	3	3	1	2	19.6	1.72
	1.6	2	2	1	2	19.6	3.24
	3	4	16	1	2	19.6	4.23
