Perforated metal screen

Category:Perforated Metal Mesh
Material:mild steel, galvanized steel, stainless steel, aluminum, brass etc.
Properties:perforated mesh
Application:widely used for decoration, screening, separation, sifting, and filtration

tags:
perforated metal screen,perforated metal,

Inquiry now

Send email

We highly appreciate your feedback. TEL: 0086-10-68220585 E-mail: sales@kingdamesh.com

Mesh Description
Mesh Specification
Relevant Picture
Recommend Products

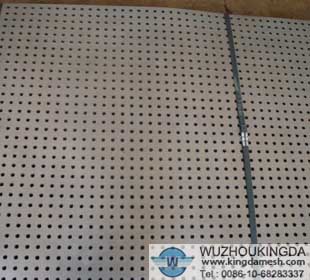

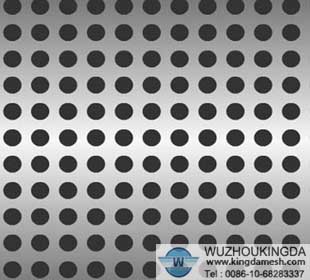

Perforated metal screen
Material: mild steel, galvanized steel, stainless steel, aluminum, brass etc.
Hole style: round, rectangular, elliptical, diamond, hexagonal, cross, slotted, star, plum blossom, other special patterns.
Color: silver, red, green, yellow, blue etc.
Usage: for decoration, screening, separation, sifting, and filtration, drying, cooling, cleaning and other specifications in civil construction, mechanical device protection, handicraft, cover, road, bridge, step etc.
feature:
1.Good economy, washable and usable repeatedly for many times
2.Used for primary filtration system of center air condition
3.Usable for ventilation filter, especially endurable for acid, and high temperature
4.Apply in the pre-filtering in kitchen oil and mist filter system

If you are interested, pls. feel free to contact us. Tel: 0086-10-68285557 Email: service.wzjd@hotmail.com

Plate Material	Thickness of Metal (mm)	Hole Dia. (mm)	Pitch (mm)	Sheet Width (m)	Sheet Length (m)	Porosity (%)
Rolling plate	0.2	Ø 6	2	1	20	44
	0.35	Ø 5	4	1	20	24
	0.45	Ø 6	3	1	20	35
	0.8	Ø 3	3	1	20	19.6
Flat plate	0.5	Ø 1	1	1	2	19.6
	0.55	1.1	2.2	1	2	22.67
	0.55	1.5	2.8	1	2	26.03
	0.8	Ø 1.5	1.5	1	2	19.6
	0.8	Ø 2.0	3.4	1	2	30.78
	1.5	Ø 2	2	1	2	19.6
	1.5	5.0	8.0	1	2	35.39
	3	Ø 5	16	1	2	19.6
Stainless steel plate	0.5	Ø 1	1	1	2	19.6
	0.8	Ø 1.5	1.5	1	2	19.6
	1	Ø 2	2	1	2	19.6
	2	Ø 5	16	1	2	19.6
Aluminum plate	0.5	Ø 1	1	1	2	19.6
	0.8	Ø 3	3	1	2	19.6
	1.6	Ø 2	2	1	2	19.6
	3	Ø 4	16	1	2	19.6
