Perforated metal screens

Category:Perforated Metal Mesh
Material:low carbon steel plate, stainless steel plate, aluminum plate
Properties:winding-resisting, flat and smooth surface
Application:widely use as agriculture equipment, audio, automotive & transport, architecture

tags:
perforated metal screen,perforated screen,

Inquiry now

Send email

We highly appreciate your feedback. TEL: 0086-10-68220585 E-mail: sales@kingdamesh.com

Mesh Description
Mesh Specification
Relevant Picture
Recommend Products

Perforated metal screens
1. Material: low carbon steel plate, stainless steel plate, aluminum plate, Al-Mg alloy plate
2. Hole Diameter: 0.5-100mm
3. Dimensions of the perforated metal screens:
        1000mmX2000mm
        1220mmX2400mm
        1250mmX2500mm
      1250mmX6000mm
        1500mmX3000mm
        1500mmX6000mm
We can also manufacture other sheet sizes according to clients' requests.
4. Hole Patterns including:

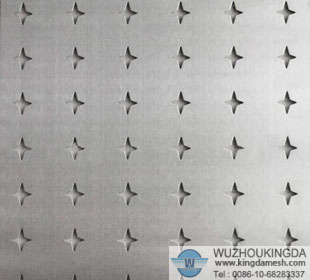

Round; Rectangular hole; Square; Triangle; Diamond; Hexagonal; Cross; Slotted; and other patterns according to your drawings or application requirement.
5. Features of the perforated metal screens:
Winding-resisting, Ageing-resisting, flat and smooth surface, strong and serviceable.
6. Applications of the perforated metal screens:
Perforated material is widely use as agriculture equipment, audio, automotive & transport, architecture, design, electronics, noise control, pharmaceutical, filtration, etc.

If you are interested, please feel free to contact the following: TEL: 0086-10-68285557 E-mail: service.wzjd@hotmail.com

Reference specifications of the perforated metal screens:

material	thickness (mm)	Aperture (mm)	hole spacing (mm)	wide (m)	length (m)	Punching Rate (%)	weight (kg/m2)
Coil sheet	0.2	6	2	1	20	44	0.88
	0.35	5	4	1	20	24	2
	0.45	6	3	1	20	35	2.5
	0.8	3	3	1	20	19.6	3
Flat sheet	0.5	1	1	1	2	19.6	3.14
	0.8	1.5	1.5	1	2	19.6	5
	1.5	2	2	1	2	19.6	9.4
	3	5	16	1	2	19.6	18.8
stainless metal plate	0.5	1	1	1	2	19.6	3.14
	0.8	1.5	1.5	1	2	19.6	5
	1	2	2	1	2	19.6	6.28
	2	5	16	1	2	19.6	6.28
aluminum plate	0.5	1	1	1	2	19.6	1.08
	0.8	3	3	1	2	19.6	1.72
	1.5	2	2	1	2	19.6	3.24
	2	4	16	1	2	19.6	4.23
