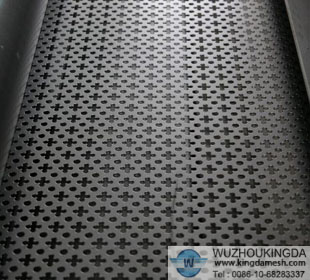

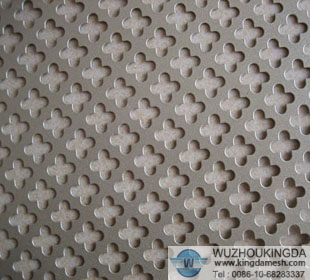

Relevant Picture
Recommend Products

Perforated metal sheets
Material: Aluminum plate, carbon plate, stainless steel plate, aluminum - magnesium alloy plate, Cooper wire plate, nickel plate.
Processing and pattern: Perforation to the diamond, square, circle, triangle and decorative patterns
Production process: Die--perforating--slitting--shearing--roller--leveling--clean--packing.
Hole Patterns including: Round; Rectangular hole; Square; Triangle; Diamond; Hexagonal; Cross; Slotted; and other patterns according to your drawings or application requirement.
Hole Size: 0.1MM-100MM
Thickness: 0.2MM-3.0MM
Applications of the perforated metal sheets:
It is widely used in highway, railway, civil construction, and water conservancy construction, protection of various forms of machinery
Features of the perforated metal sheets:
Light weight, natural metal shine, beautiful design

Reference specifications of the perforated metal sheets:

Material	Panel thickness (mm)	Aperture (mm)	Pitch (mm)	Plate width (m)	Plate length (m)	Opening area (%)	Weight (kg/m2)
Coil panel	0.2	6	2	1	20	44	0.88
	0.35	5	4	1	20	24	2
	0.45	6	3	1	20	35	2.5
	0.8	3	3	1	20	19.6	3
Flat panel	0.5	1	1	1	2	19.6	3.14
	0.8	1.5	1.5	1	2	19.6	5
	1.5	2	2	1	2	19.6	9.4
	3	5	16	1	2	19.6	18.8
Stainless steel panel	0.5	1	1	1	2	19.6	3.14
	0.8	1.5	1.5	1	2	19.6	5
	1	2	2	1	2	19.6	6.28
	2	5	16	1	2	19.6	6.28
Aluminum panel	0.5	1	1	1	2	19.6	1.08
	0.8	3	3	1	2	19.6	1.72
	1.5	2	2	1	2	19.6	3.24
	2	4	16	1	2	19.6	4.23
