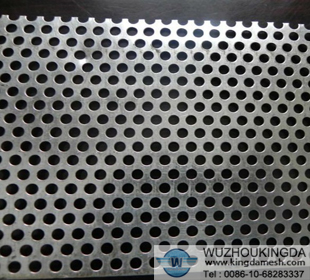

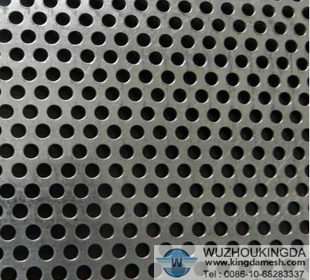

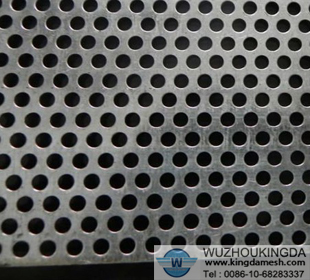

Perforated screen mesh
1. Perforated screen mesh material: Aluminum plate, stainless steel 304, 316,316lL plate, brass plate, iron sheet and so on. Punched openings can be round, square, triangle, diamond, hexagonal, cross, etc.
2. Treatment methods of the perforated screen mesh:
Galvanized: Hot-dipped galvanized before punching;
           Hot-dipped galvanized after punching;
           Electro galvanized before punching;
           Electro galvanized after punching;
PVC Coated: PVC Coated before punching;
            PVC Coated after punching
3. Application of the perforated screen mesh:
Perforated screen mesh is seen almost everywhere in today's world: as decorative architectural panels, light diffusers, air diffusers, and more. Perforated screen mesh has varied uses as screening to ventilation. The economical process of making lightweight perforated metal allows Petro-Wire and Steel to custom design architectural panels and stainless steel plates with a variety of holes, shapes and designs.
4. Specify the following when order perforated screen mesh:
Materials;
Hole pattern;
Open area;
Strength;
Hole size and thickness. Typical patterns for perforated screen include slotted, embossed, diamond, square and round. Slotted perforated metal is produced in ferrous materials in plates, stainless steel or galvanized steel.

Reference specifications of perforated screen mesh:

Plate Material	Thickness of Metal (mm)	Hole Dia. (mm)	Pitch (mm)	Sheet Width (m)	Sheet Length (m)	Porosity (%)	Weight (kg/m2)
Rolling plate	0.2	6	2	1	20	44	0.88
	0.35	5	4	1	20	24	2
	0.45	6	3	1	20	35	2.5
	0.8	3	3	1	20	19.6	3
Flat plate	0.5	1	1	1	2	19.6	3.14
	0.55	1.1	2.2	1	2	22.67	3.411
	0.55	1.5	2.8	1	2	26.03	3.268
	0.8	1.5	1.5	1	2	19.6	5
	0.8	2.0	3.4	1	2	30.78	4.465
	1.5	2	2	1	2	19.6	9.4
	1.5	5.0	8.0	1	2	35.39	7.843
	3	5	16	1	2	19.6	18.8
Stainless steel plate	0.5	1	1	1	2	19.6	3.14
	0.8	1.5	1.5	1	2	19.6	5
	1	2	2	1	2	19.6	6.28
	2	5	16	1	2	19.6	6.28
Aluminum plate	0.5	1	1	1	2	19.6	1.08
	0.8	3	3	1	2	19.6	1.72
	1.6	2	2	1	2	19.6	3.24
	3	4	16	1	2	19.6	4.23

Other specifications of perforated metal panel can be made according to your requirement.
