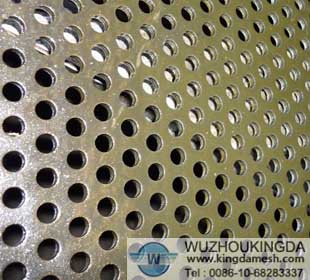

Stainless steel perforated metal screen

Category:Perforated Metal Mesh
Material:stainless steel, 201,202,302, 304,304L, 316,316L.
Properties:perforated mesh
Application:widely used in chemical industry, manufacturing of boats, pharmacy, mine etc.

tags:
stainless steel,perforated metal,

Inquiry now

Send email

We highly appreciate your feedback. TEL: 0086-10-68220585 E-mail: sales@kingdamesh.com

Mesh Description
Mesh Specification
Relevant Picture
Recommend Products

1.stainless steel perforated metal screen
2.hole:round triangle
3.thickness:5.0mm
4.hole size: min5.0mm, or larger, as request

stainless steel perforated metal mesh
Metal material: stainless steel, 201,202,302, 304,304L, 316,316L.
Nonmetal board: plywood, fiberboard, dense board, plastic board and rubber board.
Hole forms: round, triangle.
Specification:
stainless steel sheet
Thichness:5.0mm
Hole Size: 5.0mm-15mm,or as your request.
Width:1-1.5m
Length:1m-5m
The specification only for reference, it can be done according to the requests of the customers.
Uses: Stainless steel perforated sheets are widely used in chemical industry, manufacturing of boats, pharmacy, mine etc.

Plate Material	Thickness of Metal (mm)	Hole Dia. (mm)	Pitch (mm)	Sheet Width (m)	Sheet Length (m)	Porosity (%)	Weight (kg/m2)
Rolling plate	0.2	6	2	1	20	44	0.88
	0.35	5	4	1	20	24	2
	0.45	6	3	1	20	35	2.5
	0.8	3	3	1	20	19.6	3
Flat plate	0.5	1	1	1	2	19.6	3.14
	0.55	1.1	2.2	1	2	22.67	3.411
	0.55	1.5	2.8	1	2	26.03	3.268
	0.8	1.5	1.5	1	2	19.6	5
	0.8	2.0	3.4	1	2	30.78	4.465
	1.5	2	2	1	2	19.6	9.4
	1.5	5.0	8.0	1	2	35.39	7.843
	3	5	16	1	2	19.6	18.8
Stainless steel plate	0.5	1	1	1	2	19.6	3.14
	0.8	1.5	1.5	1	2	19.6	5
	1	2	2	1	2	19.6	6.28
	2	5	16	1	2	19.6	6.28
Aluminum plate	0.5	1	1	1	2	19.6	1.08
	0.8	3	3	1	2	19.6	1.72
	1.6	2	2	1	2	19.6	3.24
	3	4	16	1	2	19.6	4.23
