decorative perforated mesh,perforated metal-Wuzhou Kingda Wire Cloth Co. Ltd

decorative perforated mesh

Category:Perforated Metal Mesh
Material:stainless steel board, aluminum board
Properties:perforated mesh
Application:be used to civil construction, mechanical device protection, handicraft manufacture, upscale sound heart cover, grain ventilates.

tags:
decorative perforated mesh,perforated metal,

Inquiry now

Send email

We highly appreciate your feedback. TEL: 0086-10-68220585 E-mail: sales@kingdamesh.com

Mesh Description
Mesh Specification

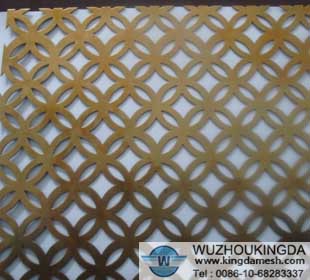

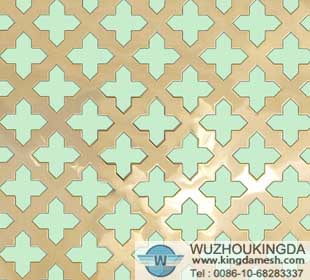

Relevant Picture
Recommend Products

decorative perforated mesh
Material: stainless steel board, aluminum board, cold galvanized and hot dipped galvanized steel board, copper plate and fiberboard, plastic board and so on.
Feature: light weight, skid prevention and artistic. We use advanced CNC punch press and large-tonnage automatic feeding punch press equipment, and produce the mesh by roll to roll, roll to piece.
Shape: long square hole, square hole, round hole, triangle hole, hexagonal hole, the plum blossom hole, scale hole and other different kinds of hole. The company can process the different kinds of type according to the customer order.
Uses: Perforated metal can be used to civil construction, mechanical device protection, handicraft manufacture, upscale sound heart cover, grain ventilates.

If you are interested, pls. feel free to contact us. Tel: 0086-10-68285557 Email: service.wzjd@hotmail.com

Sheet Thickness (mm)	Opening in Width (mm)	Opening in Length (mm)	Stem (mm)	Roll Width (mm)	Roll Length (mm)	Weight (kg/m2)
0.5	2.5	4.5	0.5	0.5	1	1.8
0.5	10	25	0.5	0.6	2	0.73
0.6	10	25	1	0.6	2	1
0.8	10	25	1	0.6	2	1.25
1	10	25	1.1	0.6	2	1.77
1	15	40	1.5	2	4	1.85
1.2	10	25	1.1	2	4	2.21
1.2	15	40	1.5	2	4	2.3
1.5	15	40	1.5	1.8	4	2.77
1.5	23	60	2.6	2	3.6	2.77
2	18	50	2.1	2	4	3.69
2	22	60	2.6	2	4	3.69
3	40	80	3.8	2	4	5.00
4	50	100	4	2	2	11.15
4.5	50	100	5	2	2.7	11.15
5	50	100	5	1.4	2.6	12.39
6	50	100	6	2	2.5	17.35
8	50	100	8	2	2.1	28.26
