perforated stainless steel

Category:Perforated Metal Mesh
Material:stainless steel ,galvanized, iron
Properties:perforated sheet
Application:used for decorating, cage ventilation, and antiskid.

tags:
perforated stainless steel,perforated metal,

Inquiry now

Send email

We highly appreciate your feedback. TEL: 0086-10-68220585 E-mail: sales@kingdamesh.com

Mesh Description
Mesh Specification
Relevant Picture
Recommend Products

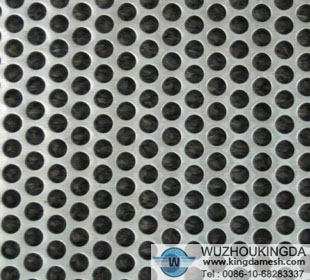

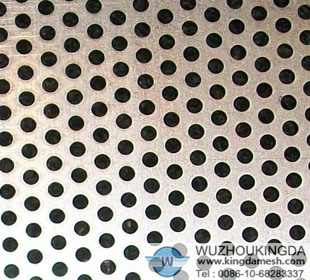

Perforated stainless steel
(1)material : stainless steel ,galvanized, iron
(2)hole:0.2-500mm
(3)hole shape :round ,square ,length and other various tape .
(4)thickness :0.15-20mm
(5)sheet size :1000*2000mm,1220*2440mm,3ft*8ftand as customers requirement to do.
(6)packing :iron pallet or wooden pallet
(7)payment: by T/T
The main further processing products: such as Defend sand tube, Oil sand control protective coat. Spiral welded tube and so on. We also can provide many kinds of perforated tubes.
Used: they can be used for decorating, cage ventilation, and antiskid. At the same time, the different mesh can be as the guard of central heating, air conditioning equipment, different sorts of chassis and machines. Another important use is filtration. For instance, filter, filter pipe, water and gas treatment equipment.
The surface of board is plain, clean and no seta. The specifications and materials of punching sheet can be produced and installed in accordance with the needs of users.

If you are interested, pls. feel free to contact us. Tel: 0086-10-68285557 Email: service.wzjd@hotmail.com

specification
Hole Diameter		Staggered Centers	Sheet Thickness		Open Area
0.033 In.	0.84mm	0.055	0.0165-0.0198 IN.	0.40-0.50mm	28.00%
0.045 In.	1.14mm	0.066	0.0165-0.0198 IN.	0.40-0.50mm	37.00%
1/16 In.	1.59mm	3/32 In.	0.026-0.053 IN.	0.66-1.35mm	41.00%
1/16 In.	1.59mm	1/8 In.	0.046-0.053 IN.	1.17-1.36mm	23.00%
3/32 In.	2.38mm	9/64 In.	0.054-0.065 IN.	1.37-1.65mm	40.30%
3/32 In.	2.38mm	5/32 In.	0.026-0.079 IN.	0.66-2.00mm	33.00%
3/32 In.	2.38mm	1/4 In.	0.033-0.053''	0.84-1.35mm	12.50%
1/8 In.	3.17mm	3/16 In.	0.026-0.129''	0.80-2.89mm	40.00%
1/8 In.	3.17mm	7/32 In.	0.026-0.039''	0.66-0.99mm	29.60%
5/32 In.	3.97mm	3/16 IN.	0.026-0.065''	0.66-1.65mm	63.00%
3/16 In.	4.76mm	1/4 IN.	0.026-0.079''	0.66-2.00mm	50.00%
3/16 In.	4.76mm	5/16 IN.	0.029'', 0.059''	0.73mm, 1.50mm	32.00%
1/4 In.	6.35mm	5/16 IN.	0.026-0.079''	0.66-2.00mm	58.00%
1/4 In.	6.35mm	3/8 IN.	0.012'', 0.026-0.065''	0.30mm, 0.66-1.65mm	40.00%
1/2 In.	12.70mm	11/16 IN.	0.059'', 0.121''	1.50mm, 3.00mm;	48.00%
