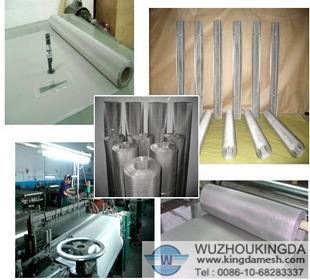

Relevant Picture
Recommend Products

635 Mesh T316 Stainless steel wire mesh
1. Introduction:
Stainless steel mesh is a woven fabric that is normally made from T316 stainless steel wire. It has various applications throughout the industrial market and the domestic market.
2. 635 mesh T316 Stainless steel wire mesh features:
High tension, much higher tension than common polyester mesh, and this property is very stable;
Super Precision: Uniform wire diameter and aperture with extremely low difference;
Low elongation: Very small elongation of wire mesh at high tension;
High Flexibility: The wire mesh will not lose elasticity at extreme tension;
High Corrosion Résistance: The excellent corrosion resistance of stainless steel wire exceeds polyester fiber.
Non-electrostatic: To avoid affects of no electrostatic for printing and ensure the safety of printing;
Good Heat-melting Resistance: Special features of steel wire mesh, suitable for heat-melting ink.
Good Solvent Resistance: To avoid the affect of any solvents to wire mesh and to ensure the safety of printing.
3. Which industrial and domestic industries can T316 Stainless steel wire mesh be found?
Chemical
Food and beverage
Mining
Refining
Healthcare
Architectural
Acoustic
Automotive
Security
Pharmaceutical
Environmental
Stainless steel mesh is widely used as mud network in oil, as screen filter in chemical, as pickling network in plating, as accessory network in light industry, telecommunication and also used for scientific purpose.

Common specifications of T316 Stainless steel wire mesh as follows;

Mesh	Wire dia.		Aperture		Opening area (%)	Weight (lb)/ 100sq.ft.
Mesh	inch	mm	inch	mm	Opening area (%)	Weight (lb)/ 100sq.ft.
1x1	0.08	2.03	0.92	23.37	84.6	41.1
2x2	0.063	1.6	0.437	11.1	76.4	51.2
3x3	0.054	1.37	0.279	7.09	70.1	56.7
4x4	0.063	1.6	0.187	4.75	56	104.8
4x4	0.047	1.19	0.203	5.16	65.9	57.6
5x5	0.041	1.04	0.159	4.04	63.2	54.9
6x6	0.035	0.89	0.132	3.35	62.7	48.1
8x8	0.028	0.71	0.097	2.46	60.2	41.1
10x10	0.025	0.64	0.075	1.91	56.3	41.2
10x10	0.02	0.51	0.08	2.03	64	26.1
12x12	0.023	0.584	0.06	1.52	51.8	42.2
12x12	0.02	0.508	0.063	1.6	57.2	31.6
14x14	0.023	0.584	0.048	1.22	45.2	49.8
14x14	0.02	0.508	0.051	1.3	51	37.2
16x16	0.018	0.457	0.0445	1.13	50.7	34.5
18x18	0.017	0.432	0.0386	0.98	48.3	34.8
20x20	0.02	0.508	0.03	0.76	36	55.2
20x20	0.016	0.406	0.034	0.86	46.2	34.4
24x24	0.014	0.356	0.0277	0.7	44.2	31.8
30x30	0.013	0.33	0.0203	0.52	37.1	34.8
30x30	0.012	0.305	0.0213	0.54	40.8	29.4
30x30	0.009	0.229	0.0243	0.62	53.1	16.1
35x35	0.011	0.279	0.0176	0.45	37.9	29
40x40	0.01	0.254	0.015	0.38	36	27.6
50x50	0.009	0.229	0.011	0.28	30.3	28.4
50x50	0.008	0.203	0.012	0.31	36	22.1
60x60	0.0075	0.191	0.0092	0.23	30.5	23.7
60x60	0.007	0.178	0.0097	0.25	33.9	20.4
70x70	0.0065	0.165	0.0078	0.2	29.8	20.8
80x80	0.0065	0.165	0.006	0.15	23	23.2
80x80	0.0055	0.14	0.007	0.18	31.4	16.9
90x90	0.005	0.127	0.0061	0.16	30.1	15.8
100x100	0.0045	0.114	0.0055	0.14	30.3	14.2
100x100	0.004	0.102	0.006	0.15	36	11
100x100	0.0035	0.089	0.0065	0.17	42.3	8.3
110x110	0.004	0.1016	0.0051	0.1295	30.7	12.4
120x120	0.0037	0.094	0.0064	0.1168	30.7	11.6
150x150	0.0026	0.066	0.0041	0.1041	37.4	7.1
160x160	0.0025	0.0635	0.0038	0.0965	36.4	5.94
180x180	0.0023	0.0584	0.0033	0.0838	34.7	6.7
200x200	0.0021	0.0533	0.0029	0.0737	33.6	6.2
250x250	0.0016	0.0406	0.0024	0.061	36	4.4
270x270	0.0016	0.0406	0.0021	0.0533	32.2	4.7
300x300	0.0015	0.0381	0.0018	0.0457	29.7	3.04
325x325	0.0014	0.0356	0.0017	0.0432	30	4.4
400x400	0.001	0.0254	0.0015	0.37	36	3.3
500x500	0.001	0.0254	0.001	0.0254	25	3.8
635x635	0.0008	0.0203	0.0008	0.0203	25	2.63
