Dutch Woven Wire Mesh

Category:Stainless Steel Wire Mesh
Material:brass wire,nickel wire aluminum
Properties:stainless steel wire mesh
Application:used in gas,liquid filter separated from other medium to spend

tags:
Dutch woven wire mesh,Dutch woven mesh,woven wire mesh,

Inquiry now

Send email

We highly appreciate your feedback. TEL: 0086-10-68220585 E-mail: sales@kingdamesh.com

Mesh Description
Mesh Specification
Relevant Picture
Recommend Products

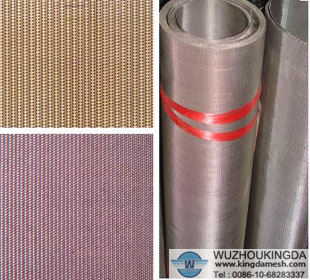

Dutch woven wire mesh
1. Materials of dutch woven wire mesh: The major materials of dutch woven wire mesh are stainless steel AISI 304, 304L, 316, 316L, 310, brass wire, nickel wire aluminum, ( tinned ) copper, metal wire, galvanized, steel, etc.
2. Features of dutch woven wire mesh: Our dutch woven wire mesh has the features of very good flow rates, small pressure drop; surface is slightly structured.
3. Weaving forms of dutch woven wire mesh:
There are several weaving method for dutch woven wire mesh, such as the plain dutch weave, twill dutch weave and reverse dutch weave.
4. Application of dutch woven wire mesh: Our dutch woven wire mesh can be widely used in gas, liquid filter separated from other medium to spend. And also can be used in the spaceflight, petroleum industry, chemical industry, mining industry and so on.

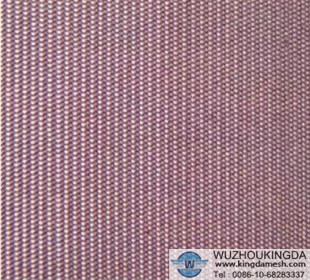

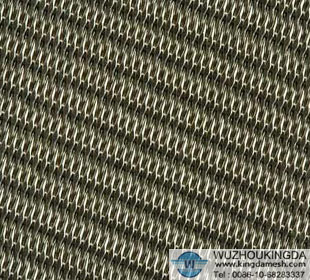

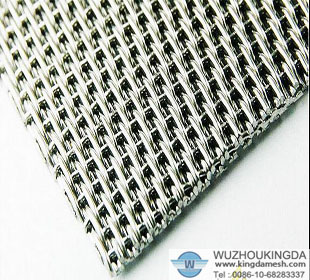

dutch woven wire mesh

5. Reference specifications of dutch woven wire mesh:

Plain Dutch
Gauge	Mesh	Wire Diameter	Reference Values Of Darticles Passed
40	10*64	0.55*0.42	260
50	12*75	0.45*0.35	220
80	24*110	0.35*0.25	160
100	25*140	0.28*0.20	100
120	30*150	0.25*0.18	80
140	35*180	0.20*0.16	70
160	40*200	0.18*0.13	60
180	45*220	0.16*0.12	56
200	50*250	0.15*0.11	50
240	60*300	0.14*0.09	45
260	65*320	0.13*0.08	36
280	70*400	0.125*0.07	34
300	80*700	0.11*0.039	32

Twilled Dutch
Gauge	Mesh	Wire Diameter	Reference Values Of Darticles Passed
80	20*250	0.28*0.2	38
120	30*300	0.25*0.18	36
200	50*500	0.14*0.11	34
320	80*700	0.11*0.08	32
320	80*780	0.10*0.07	30
360	90*780	0.10*0.07	25
400	100*780	0.10*0.07	22
400	100*900	0.10*0.063	20
500	120*1100	0.07*0.05	17
630	150*1400	0.063*0.04	16
650	165*1400	0.07*0.04	14
685	180*1800	0.063*0.032	13
795	200*1400	0.07*0.04	12
795	200*1800	0.05*0.032	10
850	210*1900	0.045*0.03	10
1000	250*2000	0.045*0.028	8
1125	280*2200	0.036*0.026	7
1200	300*2200	0.036*0.026	6
1250	325*2300	0.035*0.025	5
1600	400*2800	0.03*0.018	3

We also can provide other specification according to the clients' requirements. Meanwhile, we accept the business of processing supply material.
