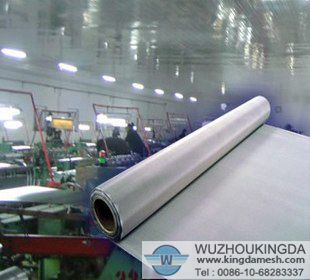

Fine Woven Stainless Steel Mesh
1. Material: SUS302, 304, 316, 316L
2. Weave types of Fine Woven Stainless Steel Mesh : Plain weave, Plain Dutch weaves, Twilled weave, and Twilled Dutch weave.
2.1 Plain weave: Each wire is woven alternately over and under the warp wires through the cloth at 90 degree angles.
2.2 Plain Dutch weave: Each warp wire and each weft wire passes alternately over and under the wires running traversal through the cloth.
2.3 The Twilled Weave: Each weft wire passes over two and under two warp wires, and each warp wire passes over and under two weft wires.
2.4 Twilled Dutch Weave: Fill wires are passed alternately over and under two warp wires.
Features: acid-resisting, alkali-resisting, heat-resisting and wear-resisting.
3. Fine Woven Stainless Steel Mesh Function: Screening of mines, glass, porcelain and sand stone powder
4. Characters of Fine Woven Stainless Steel Mesh: acid-resistance, alkali-resistance, heat-resistance, Tension strength-resistance.

Reference specifications of Fine Woven Stainless Steel Mesh:
Wire dia.: 5mm-0.012mm
Width: 0.5m-3m
Mesh: 1mesh to 500mesh

Mesh	wire diameter		Aperture		hole area	Theory weight
Mesh	Inch	mm	Inch	mm	hole area	Theory weight
3X3	.054	1.37	.279	7.09	70.1	56.7
4X4	.063	1.60	.187	4.75	56.0	104.8
4X4	.047	1.19	.203	5.16	65.9	57.6
8X8	.028	.71	.097	2.46	60.2	41.1
10X10	.025	.64	.075	1.91	56.3	41.2
20X20	.020	.508	.0300	.76	36.0	55.2
24X24	.014	.356	.0277	.70	44.2	31.8
30X30	.013	.330	.0203	.52	37.1	34.8
40X40	.010	.254	.0150	.38	36.0	27.6
60X60	.0075	.191	.0092	.23	30.5	23.7
80X80	.0065	.165	.0060	.15	23.0	23.2
90X90	.005	.127	.0061	.16	30.1	15.8
100X100	.0045	.114	.0055	.14	30.3	14.2
120X120	.0037	.0940	.0064	.1168	30.7	11.6
150X150	.0026	.0660	.0041	.1041	37.4	7.1
200X200	.0021	.0533	.0029	.0737	33.6	6.2
250X250	.0016	.0406	.0024	.0610	36.0	4.4
270X270	.0016	.0406	.0021	.0533	32.2	4.7
300X300	.0051	.0381	.0018	.0457	29.7	3.04
325X325	.0014	.0356	.0017	.0432	30.0	4.40
400X400	.0010	.0254	.0015	.370	36.0	3.3
500X500	.0010	.0254	.0010	.0254	25.0	3.8
635X635	.0008	.0203	.0008	.0203	25.0	2.63
