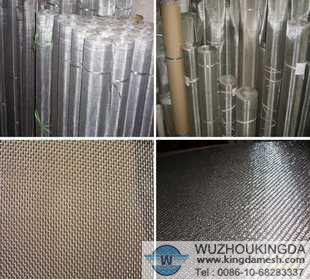

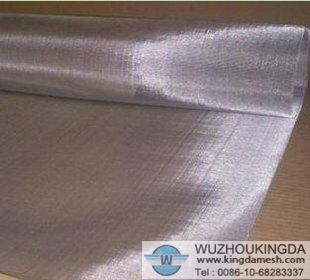

Hi-Tensile SS Woven Wire
1. Material: stainless steel wire materials in SUS302, 304, 316, 304L, 316L.
2. Typical Weaving Patterns for Hi-Tensile SS Woven Wire: Plain weave, twill weave, Dutch weave, Dutch plain woven.
Plain Weave Stainless Steel Wire Mesh: Hi-Tensile SS Woven Wire can be divided into Plain Weave, Twill Weave and Dutch Weave according to difference of weaving types. Stainless Steel Wire Mesh Plain weave is the most commonly used weave. Each warp wire crosses alternately above and below each weft wire. Warp and weft wires generally have the same diameter.
Twill Weave Stainless Steel Wire Mesh: Each weft wire passes alternately over two, and then under two successive warp wires and each warp wire passes alternately over two and under two successive weft wires. It is possible to be used to allow a heavier than standard wire diameter.
Dutch Weave Stainless Steel Wire Mesh: Dutch Twill Woven Wire Cloth offers higher strength than regular Dutch woven wire cloth. It packs even more wires in a given area than Dutch plain woven wire cloth. Generally, Dutch Twill Woven Wire Cloth offers finer mesh counts and lower flow than other Dutch Woven Wire Cloth and can be made to filter particles as fine as 2 microns in diameter.
Dutch Plain Woven Wire Cloth is primarily used as filter cloth. This kind of woven wire cloth has a coarser mesh and wire in the warp direction and a finer mesh and wire in the weft direction. Dutch Plain Woven Wire Cloth makes an ideal filter cloth with a very compact, firm mesh with great strength.
3. Hi-Tensile SS Woven Wire applications:
Stainless steel wire mesh, with its excellent resistance against acid, alkali, heat and corrosion, find extensive uses in processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc.

•
