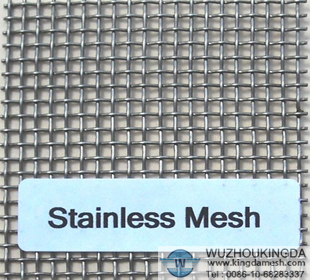

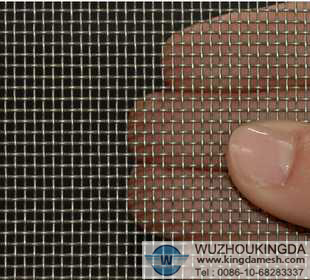

Medium Stainless Meshes
1. Material: Medium stainless mesh is made of stainless steel wire 304, 316, 316L, 201 and so on others. Stainless steel mesh is the most popular woven screen in the industrial world. It is also called 18-8 due to 18% chromium and 8% nickel.
2. Characteristics of Medium stainless meshes:
It has acid-resisting, alkali-resisting, heat-resisting and wear-resisting and long life style features.
3. Usage of Medium stainless meshes:
It is used where clean long lasting vents, filters, or grilles are need .These meshes are used for sorting and screening of abrasives, liquids, powders and other solids. It is the less expensive, stronger, but not as corrosion resistant as Type 304 is the basic stainless alloy, and unless another alloy specified it is assumed that this type is acceptable.

Reference specification of Medium stainless meshes:

Mesh/Inch	Wire Diameter		Aperture		Open Area	Weight(LB) /100 Square Foot
Mesh/Inch	Inch	MM	Inch	MM	Open Area	Weight(LB) /100 Square Foot
1x1	0.08	2.03	0.92	23.37	84.6	41.1
2X2	0.063	1.6	0.437	11.1	76.4	51.2
3X3	0.054	1.37	0.279	7.09	70.1	56.7
4X4	0.063	1.6	0.187	4.75	56	104.8
4X4	0.047	1.19	0.203	5.16	65.9	57.6
5X5	0.041	1.04	0.159	4.04	63.2	54.9
6X6	0.035	0.89	0.132	3.35	62.7	48.1
8X8	0.028	0.71	0.097	2.46	60.2	41.1
10X10	0.025	0.64	0.075	1.91	56.3	41.2
10X10	0.02	0.51	0.08	2.03	64	26.1
12X12	0.023	0.584	0.06	1.52	51.8	42.2
12X12	0.02	0.508	0.063	1.6	57.2	31.6
14X14	0.023	0.584	0.048	1.22	45.2	49.8
14X14	0.02	0.508	0.051	1.3	51	37.2
16X16	0.018	0.457	0.0445	1.13	50.7	34.5
18X18	0.017	0.432	0.0386	0.98	48.3	34.8
20X20	0.02	0.508	0.03	0.76	36	55.2
20X20	0.016	0.406	0.034	0.86	46.2	34.4
24X24	0.014	0.356	0.0277	0.7	44.2	31.8
30X30	0.013	0.33	0.0203	0.52	37.1	34.8
30X30	0.012	0.305	0.0213	0.54	40.8	29.4
30X30	0.009	0.229	0.0243	0.62	53.1	16.1
35X35	0.011	0.279	0.0176	0.45	37.9	29
40X40	0.01	0.254	0.015	0.38	36	27.6
50X50	0.009	0.229	0.011	0.28	30.3	28.4
50X50	0.008	0.203	0.012	0.31	36	22.1
60X60	0.0075	0.191	0.0092	0.23	30.5	23.7
60X60	0.007	0.178	0.0097	0.25	33.9	20.4
70X70	0.0065	0.165	0.0078	0.2	29.8	20.8
