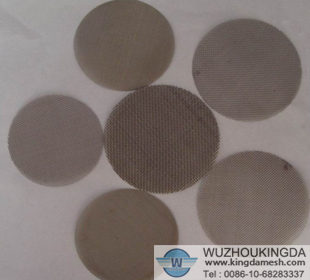

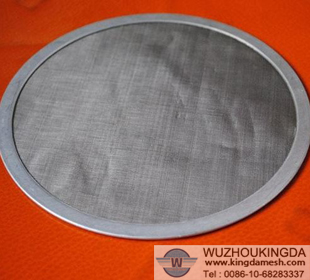

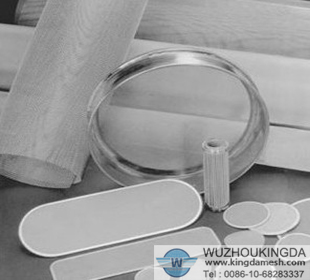

Stainless steel filter mesh
1. Introduction: Stainless steel filter mesh is usually processed from stainless steel wire mesh as it has good features of rust resistance, corrosion resistance and a long using time.

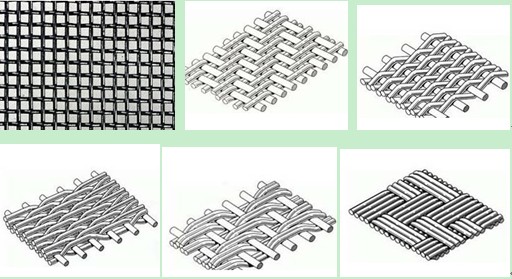

2. Weave types of the Stainless steel filter mesh: plain weave, twilled weave, plain Dutch weave, twill Dutch weave, twill Dutch double weave and strand weave.

3. Application of the Stainless steel filter mesh:
Stainless steel filter mesh for gas and liquid serves well in filtering and deleting the particle mixture in foam, liquid and air, by way of distillation, absorbing, evaporating. It widely used in those fields --- petroleum, chemicals, metallurgy, machine, pharmaceuticals, automobile and environmental protection.

Reference specifications of Stainless steel filter mesh:

Mesh	Wire Diameter		Aperture		Open Area	Weight (LB)/100 Square Feet
Mesh	inch	mm	Inch	mm	Open Area	Weight (LB)/100 Square Feet
1x1	. 080	2.03	. 920	23.37	84.6	41.1
2X2	. 063	1.60	. 437	11.10	76.4	51.2
3X3	. 054	1.37	. 279	7.09	70.1	56.7
4X4	. 063	1.60	. 187	4.75	56.0	104.8
4X4	. 047	1.19	. 203	5.16	65.9	57.6
5X5	. 041	1.04	. 159	4.04	63.2	54.9
6X6	. 035	. 89	. 132	3.35	62.7	48.1
8X8	. 028	. 71	. 097	2.46	60.2	41.1
10X10	. 025	. 64	. 075	1.91	56.3	41.2
10X10	. 020	. 51	. 080	2.03	64.0	26.1
12X12	. 023	. 584	. 060	1.52	51.8	42.2
12X12	. 020	. 508	. 063	1.60	57.2	31.6
14X14	. 023	. 584	. 048	1.22	45.2	49.8
14X14	. 020	. 508	. 051	1.30	51.0	37.2
16X16	. 018	. 457	. 0445	1.13	50.7	34.5
18X18	. 017	. 432	. 0386	. 98	48.3	34.8
20X20	. 020	. 508	. 0300	. 76	36.0	55.2
20X20	. 016	. 406	. 0340	. 86	46.2	34.4
24X24	. 014	. 356	. 0277	. 70	44.2	31.8
30X30	. 013	. 330	. 0203	. 52	37.1	34.8
30X30	. 012	. 305	. 0213	. 54	40.8	29.4
30X30	. 009	. 229	. 0243	. 62	53.1	16.1
35X35	. 011	. 279	. 0176	. 45	37.9	29.0
40X40	. 010	. 254	. 0150	. 38	36.0	27.6
50X50	. 009	. 229	. 0110	. 28	30.3	28.4
50X50	. 008	. 203	. 0120	. 31	36.0	22.1
60X60	. 0075	. 191	. 0092	. 23	30.5	23.7
60X60	. 007	. 178	. 0097	. 25	33.9	20.4
70X70	. 0065	. 165	. 0078	. 20	29.8	20.8
80X80	. 0065	. 165	. 0060	. 15	23.0	23.2
80X80	. 0055	. 140	. 0070	. 18	31.4	16.9
90X90	. 005	. 127	. 0061	. 16	30.1	15.8
100X100	. 0045	. 114	. 0055	. 14	30.3	14.2
100X100	. 004	. 102	. 0060	. 15	36.0	11.0
100X100	. 0035	. 089	. 0065	. 17	42.3	8.3
110X110	. 0040	. 1016	. 0051	. 1295	30.7	12.4
120X120	. 0037	. 0940	. 0064	. 1168	30.7	11.6
150X150	. 0026	. 0660	. 0041	. 1041	37.4	7.1
160X160	. 0025	. 0635	. 0038	. 0965	36.4	5.94
180X180	. 0023	. 0584	. 0033	. 0838	34.7	6.7
200X200	. 0021	. 0533	. 0029	. 0737	33.6	6.2
250X250	. 0016	. 0406	. 0024	. 0610	36.0	4.4
270X270	. 0016	. 0406	. 0021	. 0533	32.2	4.7
300X300	. 0051	. 0381	. 0018	. 0457	29.7	3.04
325X325	. 0014	. 0356	. 0017	. 0432	30.0	4.40
400X400	. 0010	. 0254	. 0015	. 370	36.0	3.3
500X500	. 0010	. 0254	. 0010	. 0254	25.0	3.8
635X635	. 0008	. 0203	. 0008	. 0203	25.0	2.63
