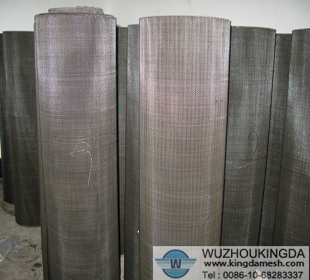

Stainless steel mesh screen
1. Material: Stainless steel mesh screen is made of type 302, 304, 304L, 316, 316L, 321 and 430 etc. It is good at giving problem-free sieving and sizing solid, liquid with excellent durability.
2. Stainless steel mesh screen types: Fine, Medium, Coarse
3. Features of Stainless steel mesh screen:
Corrosion resistance
Durability
Uniform aperture and wire diameter
Uniform porosity
4. Application of the Stainless steel mesh screen:
Stainless steel mesh screen shows good resistance to chemical effects, so it plays very important part in filtration industry such as chemical industry, food industry and so on. Stainless steel mesh screen is used for sifting solids and clear filtration of liquids, as in the cleaning of fuels or hydraulic liquids, or in water treatment.
Reference specifications of Stainless steel mesh screen:
|
Mesh
|
Wire Diameter
|
Aperture
|
Open Area
|
Weight (LB)/100 Square Feet
|
|
inch
|
mm
|
Inch
|
mm
|
|
1x1
|
. 080
|
2.03
|
. 920
|
23.37
|
84.6
|
41.1
|
|
2X2
|
. 063
|
1.60
|
. 437
|
11.10
|
76.4
|
51.2
|
|
3X3
|
. 054
|
1.37
|
. 279
|
7.09
|
70.1
|
56.7
|
|
4X4
|
. 063
|
1.60
|
. 187
|
4.75
|
56.0
|
104.8
|
|
4X4
|
. 047
|
1.19
|
. 203
|
5.16
|
65.9
|
57.6
|
|
5X5
|
. 041
|
1.04
|
. 159
|
4.04
|
63.2
|
54.9
|
|
6X6
|
. 035
|
. 89
|
. 132
|
3.35
|
62.7
|
48.1
|
|
8X8
|
. 028
|
. 71
|
. 097
|
2.46
|
60.2
|
41.1
|
|
10X10
|
. 025
|
. 64
|
. 075
|
1.91
|
56.3
|
41.2
|
|
10X10
|
. 020
|
. 51
|
. 080
|
2.03
|
64.0
|
26.1
|
|
12X12
|
. 023
|
. 584
|
. 060
|
1.52
|
51.8
|
42.2
|
|
12X12
|
. 020
|
. 508
|
. 063
|
1.60
|
57.2
|
31.6
|
|
14X14
|
. 023
|
. 584
|
. 048
|
1.22
|
45.2
|
49.8
|
|
14X14
|
. 020
|
. 508
|
. 051
|
1.30
|
51.0
|
37.2
|
|
16X16
|
. 018
|
. 457
|
. 0445
|
1.13
|
50.7
|
34.5
|
|
18X18
|
. 017
|
. 432
|
. 0386
|
. 98
|
48.3
|
34.8
|
|
20X20
|
. 020
|
. 508
|
. 0300
|
. 76
|
36.0
|
55.2
|
|
20X20
|
. 016
|
. 406
|
. 0340
|
. 86
|
46.2
|
34.4
|
|
24X24
|
. 014
|
. 356
|
. 0277
|
. 70
|
44.2
|
31.8
|
|
30X30
|
. 013
|
. 330
|
. 0203
|
. 52
|
37.1
|
34.8
|
|
30X30
|
. 012
|
. 305
|
. 0213
|
. 54
|
40.8
|
29.4
|
|
30X30
|
. 009
|
. 229
|
. 0243
|
. 62
|
53.1
|
16.1
|
|
35X35
|
. 011
|
. 279
|
. 0176
|
. 45
|
37.9
|
29.0
|
|
40X40
|
. 010
|
. 254
|
. 0150
|
. 38
|
36.0
|
27.6
|
|
50X50
|
. 009
|
. 229
|
. 0110
|
. 28
|
30.3
|
28.4
|
|
50X50
|
. 008
|
. 203
|
. 0120
|
. 31
|
36.0
|
22.1
|
|
60X60
|
. 0075
|
. 191
|
. 0092
|
. 23
|
30.5
|
23.7
|
|
60X60
|
. 007
|
. 178
|
. 0097
|
. 25
|
33.9
|
20.4
|
|
70X70
|
. 0065
|
. 165
|
. 0078
|
. 20
|
29.8
|
20.8
|
|
80X80
|
. 0065
|
. 165
|
. 0060
|
. 15
|
23.0
|
23.2
|
|
80X80
|
. 0055
|
. 140
|
. 0070
|
. 18
|
31.4
|
16.9
|
|
90X90
|
. 005
|
. 127
|
. 0061
|
. 16
|
30.1
|
15.8
|
|
100X100
|
. 0045
|
. 114
|
. 0055
|
. 14
|
30.3
|
14.2
|
|
100X100
|
. 004
|
. 102
|
. 0060
|
. 15
|
36.0
|
11.0
|
|
100X100
|
. 0035
|
. 089
|
. 0065
|
. 17
|
42.3
|
8.3
|
|
110X110
|
. 0040
|
. 1016
|
. 0051
|
. 1295
|
30.7
|
12.4
|
|
120X120
|
. 0037
|
. 0940
|
. 0064
|
. 1168
|
30.7
|
11.6
|
|
150X150
|
. 0026
|
. 0660
|
. 0041
|
. 1041
|
37.4
|
7.1
|
|
160X160
|
. 0025
|
. 0635
|
. 0038
|
. 0965
|
36.4
|
5.94
|
|
180X180
|
. 0023
|
. 0584
|
. 0033
|
. 0838
|
34.7
|
6.7
|
|
200X200
|
. 0021
|
. 0533
|
. 0029
|
. 0737
|
33.6
|
6.2
|
|
250X250
|
. 0016
|
. 0406
|
. 0024
|
. 0610
|
36.0
|
4.4
|
|
270X270
|
. 0016
|
. 0406
|
. 0021
|
. 0533
|
32.2
|
4.7
|
|
300X300
|
. 0051
|
. 0381
|
. 0018
|
. 0457
|
29.7
|
3.04
|
|
325X325
|
. 0014
|
. 0356
|
. 0017
|
. 0432
|
30.0
|
4.40
|
|
400X400
|
. 0010
|
. 0254
|
. 0015
|
. 370
|
36.0
|
3.3
|
|
500X500
|
. 0010
|
. 0254
|
. 0010
|
. 0254
|
25.0
|
3.8
|
|
635X635
|
. 0008
|
. 0203
|
. 0008
|
. 0203
|
25.0
|
2.63
|
