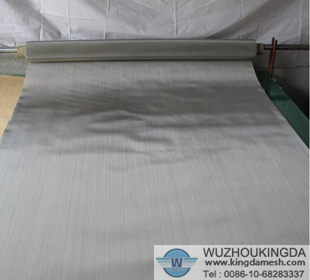

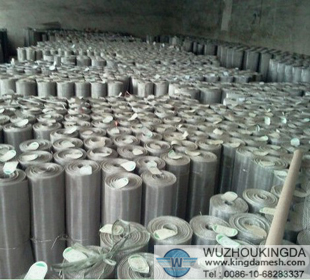

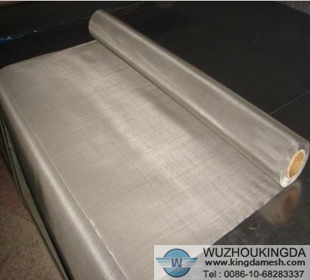

Stainless steel metal mesh

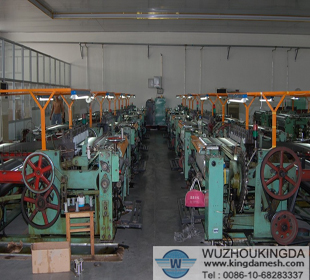

Wuzhou Kingda is experienced in producing woven wire mesh and wire cloth, mainly stainless steel metal mesh and cloth, brass and phosphor bronze wire mesh and cloth, silver wire mesh, iron woven wire mesh and wire cloth and more. Here we introduce stainless steel woven wire mesh and stainless steel woven wire cloth products. Wire materials, weaving patterns and detail sizes of the Stainless steel metal mesh as follows. For further:
1. Material: 202 304 304L 316 316L.
2. Weaving: Plain weaving, twill weaving and Dutch weaving.
3. Stainless steel metal mesh performance: Acid and alkali resistance, high temperature resistance, wear resistance, strong rally.
4. Use of the Stainless steel metal mesh: For acid, alkali environmental conditions sieving and filtering, mud mesh for the oil industry, filters for chemical fiber industry, pickling for the electroplating industry.
Reference specifications of the Stainless steel metal mesh:
Mesh/Inch
|
Wire Diameter
|
Aperture
|
Open Area
|
Weight(LB) /100 Square Foot
|
Inch
|
MM
|
Inch
|
MM
|
1x1
|
.080
|
2.03
|
.920
|
23.37
|
84.6
|
41.1
|
2X2
|
.063
|
1.60
|
.437
|
11.10
|
76.4
|
51.2
|
3X3
|
.054
|
1.37
|
.279
|
7.09
|
70.1
|
56.7
|
4X4
|
.063
|
1.60
|
.187
|
4.75
|
56.0
|
104.8
|
4X4
|
.047
|
1.19
|
.203
|
5.16
|
65.9
|
57.6
|
5X5
|
.041
|
1.04
|
.159
|
4.04
|
63.2
|
54.9
|
6X6
|
.035
|
.89
|
.132
|
3.35
|
62.7
|
48.1
|
8X8
|
.028
|
.71
|
.097
|
2.46
|
60.2
|
41.1
|
10X10
|
.025
|
.64
|
.075
|
1.91
|
56.3
|
41.2
|
10X10
|
.020
|
.51
|
.080
|
2.03
|
64.0
|
26.1
|
12X12
|
.023
|
.584
|
.060
|
1.52
|
51.8
|
42.2
|
12X12
|
.020
|
.508
|
.063
|
1.60
|
57.2
|
31.6
|
14X14
|
.023
|
.584
|
.048
|
1.22
|
45.2
|
49.8
|
14X14
|
.020
|
.508
|
.051
|
1.30
|
51.0
|
37.2
|
16X16
|
.018
|
.457
|
.0445
|
1.13
|
50.7
|
34.5
|
18X18
|
.017
|
.432
|
.0386
|
.98
|
48.3
|
34.8
|
20X20
|
.020
|
.508
|
.0300
|
.76
|
36.0
|
55.2
|
20X20
|
.016
|
.406
|
.0340
|
.86
|
46.2
|
34.4
|
24X24
|
.014
|
.356
|
.0277
|
.70
|
44.2
|
31.8
|
30X30
|
.013
|
.330
|
.0203
|
.52
|
37.1
|
34.8
|
30X30
|
.012
|
.305
|
.0213
|
.54
|
40.8
|
29.4
|
30X30
|
.009
|
.229
|
.0243
|
.62
|
53.1
|
16.1
|
35X35
|
.011
|
.279
|
.0176
|
.45
|
37.9
|
29.0
|
40X40
|
.010
|
.254
|
.0150
|
.38
|
36.0
|
27.6
|
50X50
|
.009
|
.229
|
.0110
|
.28
|
30.3
|
28.4
|
50X50
|
.008
|
.203
|
.0120
|
.31
|
36.0
|
22.1
|
60X60
|
.0075
|
.191
|
.0092
|
.23
|
30.5
|
23.7
|
60X60
|
.007
|
.178
|
.0097
|
.25
|
33.9
|
20.4
|
70X70
|
.0065
|
.165
|
.0078
|
.20
|
29.8
|
20.8
|
80X80
|
.0065
|
.165
|
.0060
|
.15
|
23.0
|
23.2
|
80X80
|
.0055
|
.140
|
.0070
|
.18
|
31.4
|
16.9
|
90X90
|
.005
|
.127
|
.0061
|
.16
|
30.1
|
15.8
|
100X100
|
.0045
|
.114
|
.0055
|
.14
|
30.3
|
14.2
|
100X100
|
.004
|
.102
|
.0060
|
.15
|
36.0
|
11.0
|
100X100
|
.0035
|
.089
|
.0065
|
.17
|
42.3
|
8.3
|
110X110
|
.0040
|
.1016
|
.0051
|
.1295
|
30.7
|
12.4
|
120X120
|
.0037
|
.0940
|
.0064
|
.1168
|
30.7
|
11.6
|
150X150
|
.0026
|
.0660
|
.0041
|
.1041
|
37.4
|
7.1
|
160X160
|
.0025
|
.0635
|
.0038
|
.0965
|
36.4
|
5.94
|
180X180
|
.0023
|
.0584
|
.0033
|
.0838
|
34.7
|
6.7
|
200X200
|
.0021
|
.0533
|
.0029
|
.0737
|
33.6
|
6.2
|
250X250
|
.0016
|
.0406
|
.0024
|
.0610
|
36.0
|
4.4
|
270X270
|
.0016
|
.0406
|
.0021
|
.0533
|
32.2
|
4.7
|
300X300
|
.0051
|
.0381
|
.0018
|
.0457
|
29.7
|
3.04
|
325X325
|
.0014
|
.0356
|
.0017
|
.0432
|
30.0
|
4.40
|
400X400
|
.0010
|
.0254
|
.0015
|
.370
|
36.0
|
3.3
|
500X500
|
.0010
|
.0254
|
.0010
|
.0254
|
25.0
|
3.8
|
635X635
|
.0008
|
.0203
|
.0008
|
.0203
|
25.0
|
2.63
|
