Stainless steel wire mesh manufacturers

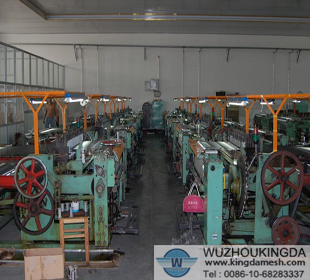

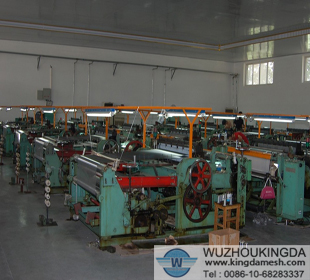

1. Introduction: Wuzhou Kingda Co. has produced the stainless steel wire mesh for more than 20 years, the material, we often choose SUS302 304 316 304L 316L, but 304 is the most common one. As for the weaving methods, we use plain weave, twill weave, Dutch weave. Everything can be made according to your special requirement.
2. Stainless steel wire mesh features:
High tension; much higher tension than common polyester mesh, and this property is very stable;
Super Precision: Uniform wire diameter and aperture with extremely low difference;
Low elongation: Very small elongation of wire mesh at high tension;
High Flexibility: The wire mesh will not lose elasticity at extreme tension;
High Corrosion Resistance: The excellent corrosion resistance of stainless steel wire exceeds polyester fiber.
Non-electrostatic: To avoid affects of no electrostatic for printing and ensure the safety of printing;
Good Heat-melting Resistance: Special features of steel wire mesh. Good Solvent Resistance: To avoid the affect of any solvents to wire mesh and to ensure the safety of printing.
3. Application of the Stainless steel wire mesh:
Stainless steel wire mesh is utilized as filter fittings for chemical industry, medicine, petroleum, telecom-communication, scientific research units and so on.

Reference specifications of Stainless Steel wire mesh:

Mesh	Wire Diameter		Aperture		Open Area	Weight (LB)/100 Square Feet
Mesh	inch	mm	Inch	mm	Open Area	Weight (LB)/100 Square Feet
1x1	. 080	2.03	. 920	23.37	84.6	41.1
2X2	. 063	1.60	. 437	11.10	76.4	51.2
3X3	. 054	1.37	. 279	7.09	70.1	56.7
4X4	. 063	1.60	. 187	4.75	56.0	104.8
4X4	. 047	1.19	. 203	5.16	65.9	57.6
5X5	. 041	1.04	. 159	4.04	63.2	54.9
6X6	. 035	. 89	. 132	3.35	62.7	48.1
8X8	. 028	. 71	. 097	2.46	60.2	41.1
10X10	. 025	. 64	. 075	1.91	56.3	41.2
10X10	. 020	. 51	. 080	2.03	64.0	26.1
12X12	. 023	. 584	. 060	1.52	51.8	42.2
12X12	. 020	. 508	. 063	1.60	57.2	31.6
14X14	. 023	. 584	. 048	1.22	45.2	49.8
14X14	. 020	. 508	. 051	1.30	51.0	37.2
16X16	. 018	. 457	. 0445	1.13	50.7	34.5
18X18	. 017	. 432	. 0386	. 98	48.3	34.8
20X20	. 020	. 508	. 0300	. 76	36.0	55.2
20X20	. 016	. 406	. 0340	. 86	46.2	34.4
24X24	. 014	. 356	. 0277	. 70	44.2	31.8
30X30	. 013	. 330	. 0203	. 52	37.1	34.8
30X30	. 012	. 305	. 0213	. 54	40.8	29.4
30X30	. 009	. 229	. 0243	. 62	53.1	16.1
35X35	. 011	. 279	. 0176	. 45	37.9	29.0
40X40	. 010	. 254	. 0150	. 38	36.0	27.6
50X50	. 009	. 229	. 0110	. 28	30.3	28.4
50X50	. 008	. 203	. 0120	. 31	36.0	22.1
60X60	. 0075	. 191	. 0092	. 23	30.5	23.7
60X60	. 007	. 178	. 0097	. 25	33.9	20.4
70X70	. 0065	. 165	. 0078	. 20	29.8	20.8
80X80	. 0065	. 165	. 0060	. 15	23.0	23.2
80X80	. 0055	. 140	. 0070	. 18	31.4	16.9
90X90	. 005	. 127	. 0061	. 16	30.1	15.8
100X100	. 0045	. 114	. 0055	. 14	30.3	14.2
100X100	. 004	. 102	. 0060	. 15	36.0	11.0
100X100	. 0035	. 089	. 0065	. 17	42.3	8.3
110X110	. 0040	. 1016	. 0051	. 1295	30.7	12.4
120X120	. 0037	. 0940	. 0064	. 1168	30.7	11.6
150X150	. 0026	. 0660	. 0041	. 1041	37.4	7.1
160X160	. 0025	. 0635	. 0038	. 0965	36.4	5.94
180X180	. 0023	. 0584	. 0033	. 0838	34.7	6.7
200X200	. 0021	. 0533	. 0029	. 0737	33.6	6.2
250X250	. 0016	. 0406	. 0024	. 0610	36.0	4.4
270X270	. 0016	. 0406	. 0021	. 0533	32.2	4.7
300X300	. 0051	. 0381	. 0018	. 0457	29.7	3.04
325X325	. 0014	. 0356	. 0017	. 0432	30.0	4.40
400X400	. 0010	. 0254	. 0015	. 370	36.0	3.3
500X500	. 0010	. 0254	. 0010	. 0254	25.0	3.8
635X635	. 0008	. 0203	. 0008	. 0203	25.0	2.63
