Stainless steel wire rope mesh
Stainless steel wire rope mesh
- Category:Stainless Steel Wire Mesh
- Material:stainless steel 304,316,316L
- Properties:High strength, strong toughness
- Application:Protection and stabilization of steep slope surfaces
tags:
stainless steel wire rope mesh,wire rope mesh,
or
We highly appreciate your feedback. TEL:0086-10-68283337 TEL: 0086-10-68283337 E-mail: sales@kingdamesh.com
- Mesh Description
- Mesh Specification
- Relevant Picture
- Recommend Products
Stainless steel wire rope mesh
Products information:
1) Wire Material: stainless steel 304,316,316L
2) The wire rope diameter: 1.2 to 5.0 mm
3) The mesh size: from 25 x 43 to 200 x 346 mm, or as customer request...
4) The maximum width is 3m, and the length is according to customer’s requirement.

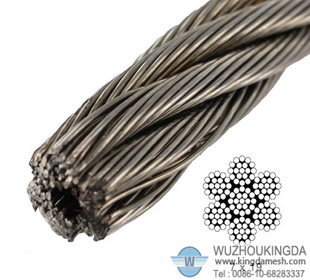

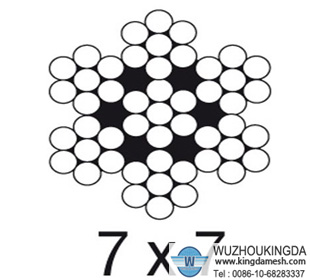

5) The wire rope construction: 1 x7, 7 x7, 7 x19, 1 x 19 etc.
6) Stainless steel buckles, or other material buckles, for example: copper material
Advantages:
1. High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.
2. It can bear the heavy snow and the gale very much.
3. without toxic material, safety, environmental protection.
The stainless steel wire rope mesh are hand-made from the stainless steel wire rope, there are two types: knotted mesh and ferruled mesh.

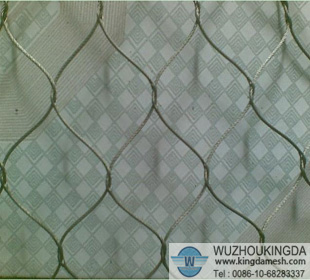

1. Knotted mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.

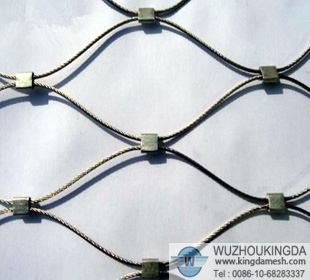

2.Ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.
