Woven stainless mesh

Category:Stainless Steel Wire Mesh
Material:SUS302, 304, 304L, 316, 316L
Properties:acid-resisting, Alkali-resisting, heat-resisting and wear-resisting
Application:In mine, oil, chemical industry, food industry, pharmaceutical industry

tags:
woven stainless mesh,woven wire mesh,

Inquiry now

Send email

We highly appreciate your feedback. TEL: 0086-10-68220585 E-mail: sales@kingdamesh.com

Mesh Description
Mesh Specification

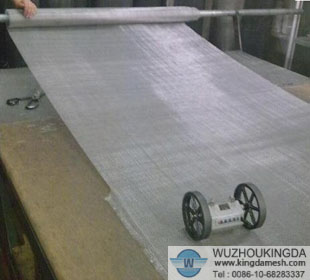

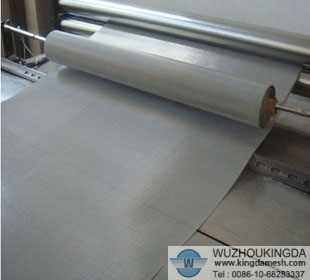

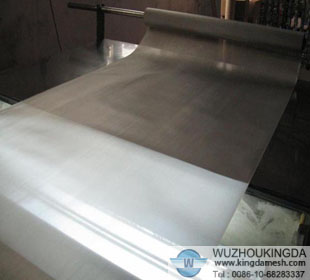

Relevant Picture
Recommend Products

Woven stainless mesh
Materials: SUS302, 304, 304L, 316, 316L
Wire diameter: 0.02mm-0.499mm.
Aperture: 0.38mm-23.37mm
Weave types: plain weave and twill weave.
Features of the woven stainless mesh:
The woven stainless mesh enjoys the performances of acid-resisting, Alkali-resisting, heat-resisting and wear-resisting
Applications of the woven stainless mesh:
In mine, oil, chemical industry, food industry, pharmaceutical industry and machine producing, etc

If you are interested, pls. feel free to contact us. Tel: 0086-10-68285557 Email: service.wzjd@hotmail.com

Reference specifications of the woven stainless mesh:

Specification List of Stainless Steel Wire Mesh
Mesh/Inch	Wire Diameter(mm)	Aperture (mm)	Filtration Area%	Mesh/Inch	Wire Diameter(mm)	Aperture (mm)	Filtration Area%
2	1.60	11.10	76	80	0.13	0.187	35
3	1.60	6.87	66	100/90	0.10	0.167	39
4	1.60	4.75	56	100	0.10	0.154	37
5	1.00	4.08	64	100	0.11	0.144	32
6	0.90	3.33	62	120	0.09	0.122	33
8	0.90	2.28	51	120	0.08	0.132	39
8	0.70	2.47	61	150	0.065	0.104	38
10	0.50	2.04	64	200	0.05	0.077	37
12	0.50	1.62	59	200	0.04	0.084	47
14	0.50	0.50	52	250	0.04	0.062	37
16	0.35	1.24	61	250	0.035	0.067	43
18	0.28	1.13	64	250	0.03	0.072	50
20	0.35	0.92	52	300	0.04	0.045	28
24	0.35	0.71	45	300	0.03	0.055	42
28	0.35	0.56	38	325	0.035	0.043	30
30	0.28	0.57	45	325	0.028	0.050	41
40	0.22	0.42	43	400	0.030	0.034	28
50	0.18	0.33	42	400	0.023	0.042	43
60	0.16	0.26	39	508	0.025	0.025	26
70	0.14	0.223	38	635	0.018	0.0203	25
