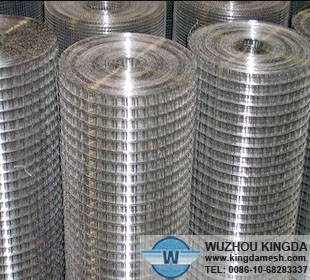

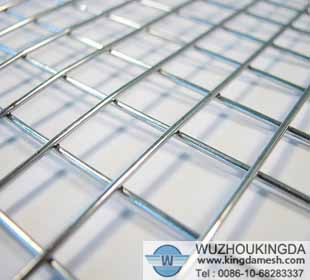

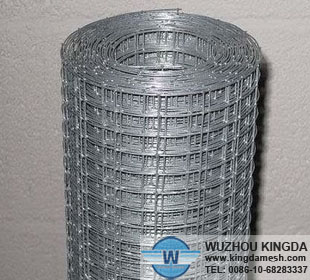

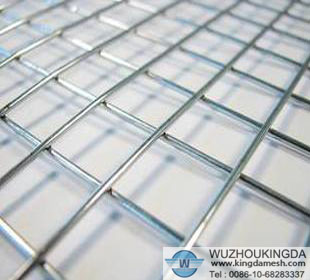

Stainless steel welded wire mesh roll
Material: stainless steel wire
Surface treatment: electro polishing
Specifications of the stainless steel welded wire mesh roll:
1. Gauge: BWG12-BWG24
2. Mesh: 1/4", 3/8", 5/8", 1/2", 3/4", 1" to 6"
3. Width: 2-6'
4. Length: 3-30m
Features of the stainless steel welded wire mesh roll:
Wild usages, good quality, body mesh flat, hole size accurate, welded spot firm, corrosion-resistance, etc.
The finished products are level and flat with sturdy structure, it has well erosion-resisting and rustproof properties.
Applications of the stainless steel welded wire mesh roll:
Welded wire mesh is available in various sizes and shapes. It is widely used in agricultural, industrial, transportation, horticultural and food procuring sectors. It is also used in mines, gardening, machine protection and other decorations.

If you are interested in our products, please feel free to contact us. TEL: 0086-10-68283337. Email: sales.wzjd@gmail.com

Specifications of welded wire mesh
Opening		Wire Diameter
In inch	In metric unit(mm)	Wire Diameter
1/4" x 1/4"	6.4mm x 6.4mm	22,23,24
3/8" x 3/8"	10.6mm x 10.6mm	19,20,21,22
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21,22,23
5/8" x 5/8"	16mm x 16mm	18,19,20,21,
3/4" x 3/4"	19.1mm x 19.1mm	16,17,18,19,20,21
1" x 1/2"	25.4mm x 12.7mm	16,17,18,19,20,21
1-1/2" x 1-1/2"	38mm x 38mm	14,15,16,17,18,19
1" x 2"	25.4mm x 50.8mm	14,15,16
2" x 2"	50.8mm x 50.8mm	12,13,14,15,16
Technical Note: 1,Standard roll length: 30m;width: 0.5m to 1.8m 2,Special sizes available at request 3,Packing: in waterproof paper in rolls. Custom packing available at request.
