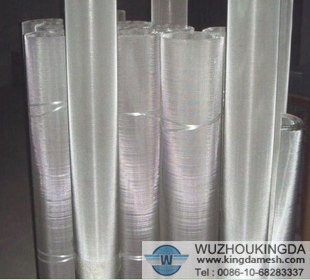

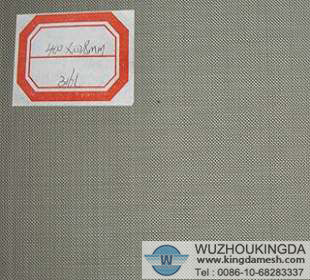

316 Stainless steel wire cloth
1. Material: 316, 316L, other material is also available, such as SS304, 304L.
2. Typical weaving patterns: lain weave, twill weave, Dutch weave, plain Dutch weave, Dutch twill weave
Plain Weave Stainless steel wire cloth: Stainless Steel Wire Mesh can be divided into Plain Weave, Twill Weave and Dutch Weave according to difference of weaving types. Stainless Steel Wire Mesh Plain weave is the most commonly used weave. Each warp wire crosses alternately above and below each weft wire. Warp and weft wires generally have the same diameter.
Twill Weave Stainless steel wire cloth: Each weft wire passes alternately over two, and then under two successive warp wires and each warp wire passes alternately over two and under two successive weft wires. It is possible to be used to allow a heavier than standard wire diameter.
Dutch Weave Stainless steel wire cloth: Dutch Twill Woven Wire Cloth offers higher strength than regular Dutch woven wire cloth. It packs even more wires in a given area than Dutch plain woven wire cloth. Generally, Dutch Twill Woven Wire Cloth offers finer mesh counts and lower flow than other Dutch Woven Wire Cloth and can be made to filter particles as fine as 2 microns in diameter.
Dutch Plain Woven Wire Cloth is primarily used as filter cloth. This kind of woven wire cloth has a coarser mesh and wire in the warp direction and a finer mesh and wire in the weft direction. Dutch Plain Woven Wire Cloth makes an ideal filter cloth with a very compact, firm mesh with great strength.
3. General Usage: 316 Stainless steel wire cloth, with its excellent resistance against acid, anti-heat and corrosion, find extensive uses processing of oils chemicals food, pharmaceuticals, airspace, machine making, etc

Reference specifications of 316 Stainless steel wire cloth:
Product range usually manufactured in 30m (up to 200) length and in width of 1m, 1.2m1.5m, 2,0m etc.

316 Stainless steel wire cloth (Plain Weave)
mesh/inch	wire diameter (mm)	aperture (mm)	-	mesh/inch	wire diameter (mm)	aperture (mm)
2mesh	1.80	10.90		60mesh	0.15	0.273
3mesh	1.60	6.866		70mesh	0.14	0.223
4mesh	1.20	5.15		80mesh	0.12	0.198
5mesh	0.91	4.17		90mesh	0.11	0.172
6mesh	0.80	3.433		100mesh	0.10	0.154
8mesh	0.60	2.575		120mesh	0.08	0.132
10mesh	0.55	1.990		140mesh	0.07	0.111
12mesh	0.50	1.616		150mesh	0.065	0.104
14mesh	0.45	1.362		160mesh	0.065	0.094
16mesh	0.40	1.188		180mesh	0.053	0.088
18mesh	0.35	1.060		200mesh	0.053	0.074
20mesh	0.30	0.970		250mesh	0.04	0.061
26mesh	0.28	0.696		300mesh	0.035	0.049
30mesh	0.25	0.596		325mesh	0.03	0.048
40mesh	0.21	0.425		350mesh	0.03	0.042
50mesh	0.19	0.318		400mesh	0.025	0.0385

Packing: water-proof paper, woven bad and as customer’s requirement.

•
