perforated tube,perforated tube manufacturer-Wuzhou Kingda Wire Cloth Co. Ltd

Perforated tube

Category:Deep processing Products
Material:Carbon steel sheet, Galvanized steel sheet, Stainless steel sheet, Aluminum sheet
Properties:perforated tube
Application:Widely used in decoration, screening, separation, sifting, filtration, drying, cooling, cleaning

tags:
perforated tube,perforated filter,

Inquiry now

Send email

We highly appreciate your feedback. TEL: 0086-10-68220585 E-mail: sales@kingdamesh.com

Mesh Description
Mesh Specification

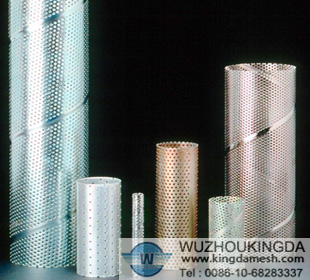

Relevant Picture
Recommend Products

Perforated tube
1. Material: Carbon steel sheet, Galvanized steel sheet, Stainless steel sheet, Aluminum sheet
2. Thickness: 0.15mm--15mm
3. Hole size: 0.8--30mm (round hole)
4. Pitch: 2mm--60mm
5. Dimension: width equals to or less than 1500mm
                          length equals to or less than 4000mm or long coil
6. Inspections
Incoming quality control→Perforating Inspection→Rolling and welding inspection→Alignment and roundness inspection→Slitting Inspection→Finish or acid or passivation inspection→Product inspection
7. Applications of the perforated tube:
Widely used in decoration, screening, separation, sifting, filtration, drying, cooling, cleaning and other specifications in civil construction, mechanical device protection, handicraft, cover, road, bridge, step etc .
8. The features of the perforated tube:
    1. Rational structure
    2. Holes are uniform
    3. Durable and handsome in appearance
    4. Easy to process deeply

9. Reference specifications of the perforated tube:

Material	Thickness of Metal(mm)	Hole Dia.(mm)	Pitch(mm)	Sheet Width(m)	Sheet Length(m)	Porosity (%)	Weight (kg/m2)
Rolling Plate	0.2	6	2	1	20	44	0.88
	0.35	5	4	1	20	24	2
	0.45	6	3	1	20	35	2.5
	0.8	3	3	1	20	19.6	3
Flat plate	0.5	1	1	1	20	19.6	3.14
	0.55	1.1	2.2	1	20	22.67	3.411
	0.55	1.5	2.8	1	20	26.03	3.268
	0.8	1.5	1.5	1	20	19.6	5
	0.8	20	3.4	1	20	30.78	4.465
	1.5	2	2	1	20	19.6	9.4
	1.5	5	8	1	20	35.39	7.843
	3	5	16	1	20	19.6	18.8
