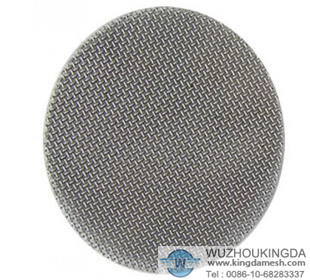

Stainless Steel Filter Discs
1. Material: Stainless steel wire 304, 316, 304L, 201.
2. Features of Stainless Steel Filter Discs:
2.1 Acid-resisting, alkali-resisting, heat-resisting and wear-resisting etc;

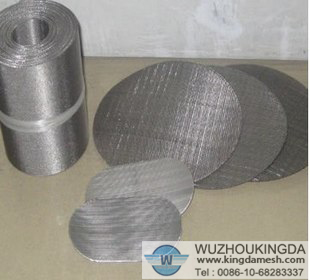

2.2 Filter Discs have different forms, like round, square, oval and can be made according to customer's requirements.
2.3 Difference layers: filter films, including the single-layer, multi-layer; Multi-layer mesh with double-layer, three, or on demand processing.
3. Stainless Steel Filter Discs application:
3.1 Decentralized &Cooling Material for Higher Ambient Temperature
3.2 Gas distribution Material
3.3 High Temperature Filtration Material
4. We can design special dimension according to customer demands.

Reference specification of Stainless Steel Filter Discs:

Mesh/Inch	Wire Diameter		Aperture		Open Area	Weight(LB) /100 Square Foot
Mesh/Inch	Inch	MM	Inch	MM	Open Area	Weight(LB) /100 Square Foot
1x1	0.08	2.03	0.92	23.37	84.6	41.1
2X2	0.063	1.6	0.437	11.1	76.4	51.2
3X3	0.054	1.37	0.279	7.09	70.1	56.7
4X4	0.063	1.6	0.187	4.75	56	104.8
4X4	0.047	1.19	0.203	5.16	65.9	57.6
5X5	0.041	1.04	0.159	4.04	63.2	54.9
6X6	0.035	0.89	0.132	3.35	62.7	48.1
8X8	0.028	0.71	0.097	2.46	60.2	41.1
10X10	0.025	0.64	0.075	1.91	56.3	41.2
10X10	0.02	0.51	0.08	2.03	64	26.1
12X12	0.023	0.584	0.06	1.52	51.8	42.2
12X12	0.02	0.508	0.063	1.6	57.2	31.6
14X14	0.023	0.584	0.048	1.22	45.2	49.8
14X14	0.02	0.508	0.051	1.3	51	37.2
16X16	0.018	0.457	0.0445	1.13	50.7	34.5
18X18	0.017	0.432	0.0386	0.98	48.3	34.8
20X20	0.02	0.508	0.03	0.76	36	55.2
20X20	0.016	0.406	0.034	0.86	46.2	34.4
24X24	0.014	0.356	0.0277	0.7	44.2	31.8
30X30	0.013	0.33	0.0203	0.52	37.1	34.8
30X30	0.012	0.305	0.0213	0.54	40.8	29.4
30X30	0.009	0.229	0.0243	0.62	53.1	16.1
35X35	0.011	0.279	0.0176	0.45	37.9	29
40X40	0.01	0.254	0.015	0.38	36	27.6
50X50	0.009	0.229	0.011	0.28	30.3	28.4
50X50	0.008	0.203	0.012	0.31	36	22.1
60X60	0.0075	0.191	0.0092	0.23	30.5	23.7
60X60	0.007	0.178	0.0097	0.25	33.9	20.4
70X70	0.0065	0.165	0.0078	0.2	29.8	20.8
