Stainless woven mesh

Category:Stainless Steel Wire Mesh
Material:SUS302, 304, 304L, 316, 316L, etc.
Properties:good resistance against heat, acid, alkaline
Application:Widely used in processing of oils, chemicals, food, pharmaceuticals

tags:
stainless woven mesh,woven wire mesh,

Inquiry now

Send email

We highly appreciate your feedback. TEL: 0086-10-68220585 E-mail: sales@kingdamesh.com

Mesh Description
Mesh Specification

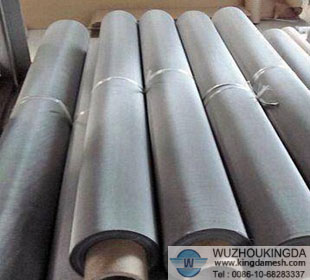

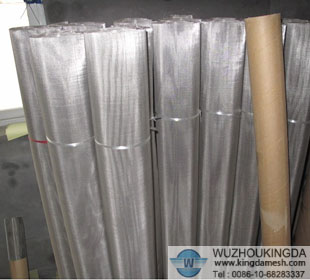

Relevant Picture
Recommend Products

Stainless woven mesh
Materials: SUS302, 304, 304L, 316, 316L, etc.
Specifications of the stainless woven mesh:
Wire diameter: 0.02mm--2.0mm
Mesh: 635 openings -- 1 opening per inch
Weave style: Plain weave, Twill Weave, Dutch Plain, Dutch Twill
Features of the stainless woven mesh:
Good resistance against heat, acid, alkaline, corrosion. Firm structure
Applications of the stainless woven mesh:
Widely used in processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc

If you are interested, pls. feel free to contact us. Tel: 0086-10-68285557 Email: service.wzjd@hotmail.com

Reference specifications of the stainless woven mesh:

Specification List of Stainless Steel Wire Mesh
Mesh/Inch	Wire Diameter(mm)	Aperture (mm)	Filtration Area%	Mesh/Inch	Wire Diameter(mm)	Aperture (mm)	Filtration Area%
2	1.60	11.10	76	80	0.13	0.187	35
3	1.60	6.87	66	100/90	0.10	0.167	39
4	1.60	4.75	56	100	0.10	0.154	37
5	1.00	4.08	64	100	0.11	0.144	32
6	0.90	3.33	62	120	0.09	0.122	33
8	0.90	2.28	51	120	0.08	0.132	39
8	0.70	2.47	61	150	0.065	0.104	38
10	0.50	2.04	64	200	0.05	0.077	37
12	0.50	1.62	59	200	0.04	0.084	47
14	0.50	0.50	52	250	0.04	0.062	37
16	0.35	1.24	61	250	0.035	0.067	43
18	0.28	1.13	64	250	0.03	0.072	50
20	0.35	0.92	52	300	0.04	0.045	28
24	0.35	0.71	45	300	0.03	0.055	42
28	0.35	0.56	38	325	0.035	0.043	30
30	0.28	0.57	45	325	0.028	0.050	41
40	0.22	0.42	43	400	0.030	0.034	28
50	0.18	0.33	42	400	0.023	0.042	43
60	0.16	0.26	39	508	0.025	0.025	26
70	0.14	0.223	38	635	0.018	0.0203	25
