Ginning wire mesh

Category:Crimped Wire Mesh
Material:galvanized iron wire,stainless steel wire,black iron wire,white steel wire etc.
Properties:crimped mesh
Application:mining industries,petroleum industries,chemical industries

tags:
Ginning wire mesh, Ginning mesh,wire mesh,

Inquiry now

Send email

We highly appreciate your feedback. TEL: 0086-10-68220585 E-mail: sales@kingdamesh.com

Mesh Description
Mesh Specification
Relevant Picture
Recommend Products

1. Material of ginning wire mesh:
We can supply ginning wire mesh that are made of a variety of materials through crimping mesh machine, such as galvanized iron wire, stainless steel wire, black iron wire, white steel wire etc.
2. Features of ginning wire mesh:
Ginning wire mesh is made in a variety of materials through crimping mesh machine, the benefit of crimped mesh is high security, stabile mesh size, mesh surface arranged orderly, beautiful, durable, corrosion resistance, not easy to fall off, long use life, smooth surface and not upwarp, structure is not loose, even mesh hole and smaller error etc. And also the ginning wire mesh have the performance bellow : high temperature, acid resistance ,alkali resistance ,corrosion resistance, wear resistance
3. Application of ginning wire mesh:

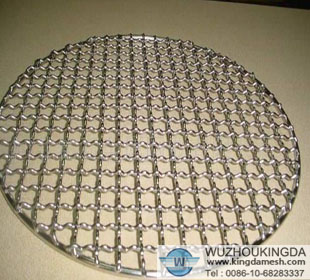

Ginning wire mesh is widely applied for these fields ,such as mining industries, petroleum industries, chemical industries, construction industries, machinery and accessories, use as the protection wire mesh, wire mesh for packing, and also they are widely used in our daily life ,like used as the barbecue grill wire netting , mesh for hardware product, mesh for art work, vibrating screen, metal basket, mesh for food equipment , mesh for cook, wall mesh , food , roads, railways, infrastructure, In addition they can be used for classification of solid materials selection, and liquid slurry filtration, breeding, civil and so on.

Ginning wire mesh

4. Reference specifications of ginning wire mesh :

Mesh	Wire	Open area %	weight kg/m2	Mesh	Wire	Open area%	Weight kg/m2
1×1	5.89	19.50	17.3	5×5	1.01	4.06	2.5
	5.35	20.01	14.3		0.91	4.16	2.0
	4.87	20.52	11.8		0.81	4.26	1.5
	4.47	20.93	9.5		0.71	4.36	1.2
	4.04	21.33	8.1		0.61	4.47	0.9
	3.65	21.74	6.5		0.55	4.52	0.7
	3.25	22.14	5.2		0.50	4.57	0.6
2×2	3.65	9.04	13.0	6×6	0.91	3.31	2.4
	3.25	9.44	10.5		0.81	3.42	1.9
	2.94	9.75	8.5		0.71	3.52	1.5
	2.34	10.35	5.0		0.61	3.62	1.1
3×3	0.91	7.55	1.2	8×8	0.55	3.67	0.9
	0.81	7.65	0.9		0.50	3.72	0.7
	0.71	7.75	0.7		0.81	2.36	2.5
	0.61	7.85	0.5		0.71	2.46	2.0
	2.03	6.43	6.0		0.61	2.56	1.4
	1.82	6.63	4.5		0.55	2.61	1.2
4×4	1.21	5.13	2.5	12×12	0.37	2.16	0.6
	1.01	5.33	2.0		0.34	2.19	0.5
	0.91	5.43	1.6		0.31	2.22	0.4
	0.81	5.53	1.3		0.71	1.40	3.0
	0.71	5.63	1.0		0.61	1.50	2.2
14X14	0.61	1.20	2.6	16X16	0.31	1.27	0.7
14X14	0.55	1.26	2.1	16X16	0.29	1.29	0.6
18X18	0.45	0.96	1.8	20X20	0.45	0.82	2.0
18X18	0.41	1.00	1.5	20X20	0.41	0.86	1.6

We also can provide other specification according to the clients' requirements. Meanwhile, we accept the business of processing supply material.
