4 mesh galvanized perforated mesh

Category:Perforated Metal Mesh
Material:galvanized sheet
Properties:perforated mesh
Application:widely used to civil construction, mechanical device protection.

tags:
4 mesh,galvanized,perforated mesh,

Inquiry now

Send email

We highly appreciate your feedback. TEL: 0086-10-68220585 E-mail: sales@kingdamesh.com

Mesh Description
Mesh Specification
Relevant Picture
Recommend Products

4 mesh Galvanized perforated mesh
1.hole:round hole
2.width:0.5m-3m
3.length:1m-5m
Galvanized perforated mesh
Material: stainless steel board, aluminum board, cold and hot steel board, copperplate and fiberboard, plastic board and so on.
Uses: Galvanized punching mesh is widely used to civil construction, mechanical device protection, handicraft manufacture, grain ventilates. It also can be used in architectural, the road, and the bridge. The product quality has achieved the national standard and the profession examination standard.
Feature: light weight, skid prevention and artistic
Shape: long square hole, square hole, round hole, triangle hole, hexagonal hole, the plum blossom hole, scale hole and other different kinds of hole.

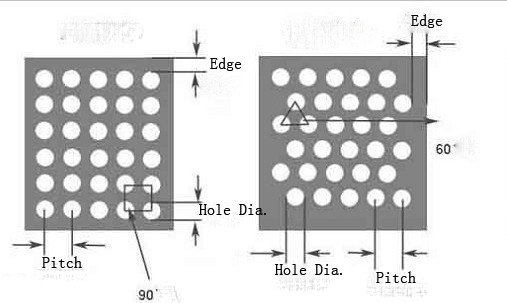

Plate Material	Thickness of Metal (mm)	Hole Dia. (mm)	Pitch (mm)	Sheet Width (m)	Sheet Length (m)	Porosity (%)	Weight (kg/m2)
Rolling plate	0.2	6	2	1	20	44	0.88
	0.35	5	4	1	20	24	2
	0.45	6	3	1	20	35	2.5
	0.8	3	3	1	20	19.6	3
Flat plate	0.5	1	1	1	2	19.6	3.14
	0.55	1.1	2.2	1	2	22.67	3.411
	0.55	1.5	2.8	1	2	26.03	3.268
	0.8	1.5	1.5	1	2	19.6	5
	0.8	2.0	3.4	1	2	30.78	4.465
	1.5	2	2	1	2	19.6	9.4
	1.5	5.0	8.0	1	2	35.39	7.843
	3	5	16	1	2	19.6	18.8
Stainless steel plate	0.5	1	1	1	2	19.6	3.14
	0.8	1.5	1.5	1	2	19.6	5
	1	2	2	1	2	19.6	6.28
	2	5	16	1	2	19.6	6.28
Aluminum plate	0.5	1	1	1	2	19.6	1.08
	0.8	3	3	1	2	19.6	1.72
	1.6	2	2	1	2	19.6	3.24
	3	4	16	1	2	19.6	4.23
