Aluminum perforated sheet

Category:Perforated Metal Mesh
Material:Aluminum sheet
Properties:perforated mesh
Application:suited for sorting, facades, ceilings, lamps, shelves, shielding.

tags:
aluminum sheet,perforated sheet,

Inquiry now

Send email

We highly appreciate your feedback. TEL: 0086-10-68220585 E-mail: sales@kingdamesh.com

Mesh Description
Mesh Specification
Relevant Picture
Recommend Products

Perforated Aluminum sheet
1)light and consistency
2)rich colors
3)sound blocking ,fire resistance
4)easy fix and install
Perforated Aluminum sheet
Descriptions of perforated Aluminum panel
1)Alloy: 1100 1060 3003
2)Thickness: 1.5-3.0mm
3)Size: tailor-made
4)Surface coating: fluorocarbon coating.
5)Colors: silver, bright silver, metallic champagne, champagne, copper, ivory, pearl white, pink, metallic grey, violet, ocean blue, jewelry blue, coffee, orange, green, etc..
(Other special colors are also available)
6)Precise dimension and roller-pressing technology which ensure the high quality of the products.
7)Flatness surface makes installation easier and the fast cut, the garment, according to the figure productive way will ensure the quality of each piece of the products and minimize the waste of raw materials.
Application of Aluminum Perforated Panel
It’s well suited for sorting, facades, ceilings, lamps, shelves, shielding, steps and of course many other purposes as well.

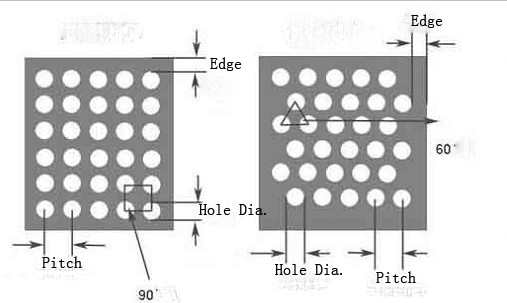

Material	Thickness of Metal(mm)	Hole Dia.(mm)	Pitch(mm)	Sheet Width(m)	Sheet Length(m)	Porosity (%)	Weight (kg/m2)
Rolling Plate	0.2	6	2	1	20	44	0.88
	0.35	5	4	1	20	24	2
	0.45	6	3	1	20	35	2.5
	0.8	3	3	1	20	19.6	3
Flat plate	0.5	1	1	1	20	19.6	3.14
	0.55	1.1	2.2	1	20	22.67	3.411
	0.55	1.5	2.8	1	20	26.03	3.268
	0.8	1.5	1.5	1	20	19.6	5
	0.8	20	3.4	1	20	30.78	4.465
	1.5	2	2	1	20	19.6	9.4
	1.5	5	8	1	20	35.39	7.843
	3	5	16	1	20	19.6	18.8
