perforated corrugated metal sheet,perforated corrugated metal sheet manufacturer-Wuzhou Kingda Wire Cloth Co. Ltd

Perforated corrugated metal sheet

Category:Perforated Metal Mesh
Material:low carbon steel plated, stainless steel plate, aluminum plate
Properties:winding-resisting, aging-resisting, corrosion-resisting
Application:Widely used in the core of filter, medicine, filtering, breeding, decoration

tags:
perforated metal panel,perforated metal sheet,

Inquiry now

Send email

We highly appreciate your feedback. TEL:0086-10-68283337 TEL: 0086-10-68283337 E-mail: sales@kingdamesh.com

Mesh Description
Mesh Specification
Relevant Picture
Recommend Products

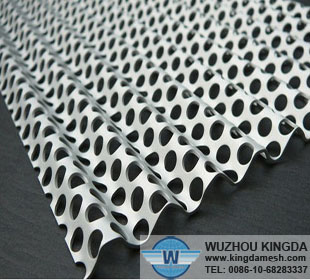

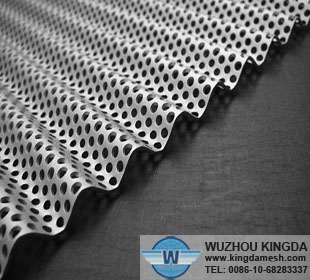

Perforated corrugated metal sheet
Material: low carbon steel plated, stainless steel plate, aluminum plate
Surface treatment: galvanized, PVC coated
Specifications of the perforated corrugated metal sheet:
Thickness: 0.15-1.2mm
Effective Width: 790-1025mm
Length: 1000-6000mm
Shape: Round, Square, Rectangular, Quincunx, Special designs according to the customers’ request
Features of the perforated corrugated metal sheet:
It is punched to meshes, winding-resisting, aging-resisting, corrosion-resisting, the top of meshes in smooth, it is strong and durable.
Applications of the perforated corrugated metal sheet:
Widely used in the core of filter, medicine, filtering, breeding, decoration, mechanical protecting, making the crafts, the meshes for the high-grade sound box, the seating for children, baskets, etc.

If you are interested in our products, please feel free to contact us. TEL: 0086-10-68283337. Email: sales.wzjd@gmail.com

Reference specifications of the perforated corrugated metal sheet:

Plate Material	Thickness of Metal (mm)	Hole Dia. (mm)	Pitch (mm)	Sheet Width (m)	Sheet Length (m)	Porosity (%)	Weight (kg/m2)
Rolling plate	0.2	6	2	1	20	44	0.88
	0.35	5	4	1	20	24	2
	0.45	6	3	1	20	35	2.5
	0.8	3	3	1	20	19.6	3
Flat plate	0.5	1	1	1	2	19.6	3.14
	0.55	1.1	2.2	1	2	22.67	3.411
	0.55	1.5	2.8	1	2	26.03	3.268
	0.8	1.5	1.5	1	2	19.6	5
	0.8	2.0	3.4	1	2	30.78	4.465
	1.5	2	2	1	2	19.6	9.4
	1.5	5.0	8.0	1	2	35.39	7.843
	3	5	16	1	2	19.6	18.8
Aluminum plate	0.5	1	1	1	2	19.6	1.08
	0.8	3	3	1	2	19.6	1.72
	1.6	2	2	1	2	19.6	3.24
	3	4	16	1	2	19.6	4.23
