white perforated metal mesh,white perforated metal mesh supplier-Wuzhou Kingda Wire Cloth Co. Ltd

White perforated metal mesh

Category:Perforated Metal Mesh
Material:low carbon steel sheet
Properties:Good quality, smooth surface, beautiful appearance
Application:Widely used in filter of automobiles internal-combustion engine

tags:
perforated metal mesh,perforated mesh,

Inquiry now

Send email

We highly appreciate your feedback. TEL:0086-10-68283337 TEL: 0086-10-68283337 E-mail: sales@kingdamesh.com

Mesh Description
Mesh Specification

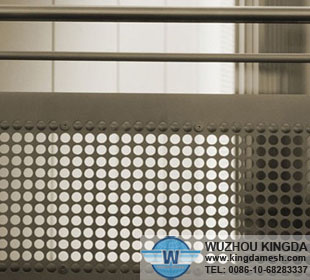

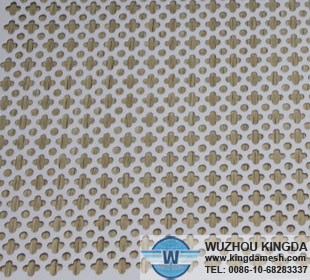

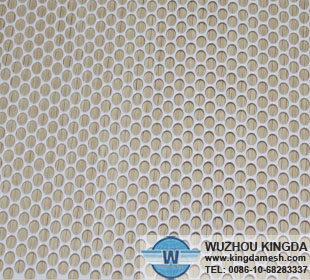

Relevant Picture
Recommend Products

White perforated metal mesh
Material: low carbon steel sheet
Surface treatment: powder coated or PVC coated into white color
Specifications of the white perforated metal mesh
(1)Cold rolled steel sheet
Thickness: 0.2mm-1mm
Length: 1m-20m
Hole Diameter: 0.8mm-10mm
(2)Plate
Thickness: 0.3mm-10mm
Size:≤1.5×3m
Hole Diameter: 0.8mm-100mm
Hole pattern: Round, square, oblong, triangle, slot, hex, oval, diamond and a broad variety of special shaped holes.
Features of the white perforated metal mesh:
Good quality, smooth surface, beautiful appearance, accurate holes, corrosion resistance, easy to process and install long service life
Applications of the white perforated metal mesh:
Widely used in filter of automobiles internal-combustion engine, sieving of mine, Medicine, grain, sound insulation of room, ventilate of grain depot, etc.

If you are interested, pls feel free to contact us. TEL: 0086-10-68283337. Email: service.wzjd@hotmail.com

Reference specifications of the white perforated metal mesh:

Specifications of the perforated metal mesh
material	thickness (mm)	Aperture (mm)	hole spacing (mm)	wide (m)	length (m)	Punching rate (%)	weight (kg/m2)
Coil sheet	0.2	6	2	1	20	44	0.88
	0.35	5	4	1	20	24	2
	0.45	6	3	1	20	35	2.5
	0.8	3	3	1	20	19.6	3
Flat sheet	0.5	1	1	1	2	19.6	3.14
	0.8	1.5	1.5	1	2	19.6	5
	1.5	2	2	1	2	19.6	9.4
	3	5	16	1	2	19.6	18.8
stainless metal plate	0.5	1	1	1	2	19.6	3.14
	0.8	1.5	1.5	1	2	19.6	5
	1	2	2	1	2	19.6	6.28
	2	5	16	1	2	19.6	6.28
aluminium plate	0.5	1	1	1	2	19.6	1.08
	0.8	3	3	1	2	19.6	1.72
	1.5	2	2	1	2	19.6	3.24
	2	4	16	1	2	19.6	4.23
