Perforated metal screens

Category:Perforated Metal Mesh
Material:low carbon steel sheet, galvanized steel sheet, aluminium sheet,etc
Properties:Perforated metal
Application:control the passage of air, liquid, light, solids, heat, electromagnetic waves

tags:
Perforated metal,Perforated screens,metal screens,

Inquiry now

Send email

We highly appreciate your feedback. TEL: 0086-10-68220585 E-mail: sales@kingdamesh.com

Mesh Description
Mesh Specification
Relevant Picture
Recommend Products

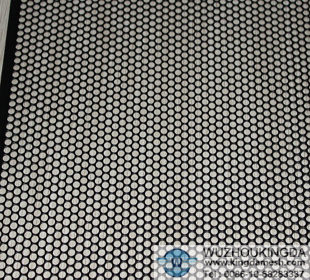

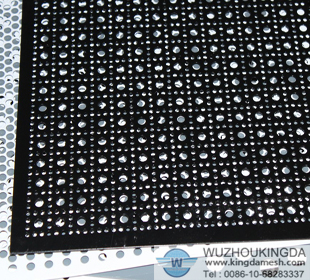

Perforated metal screens
1. Introduction: There are a number of different materials that can be perforated; perforated metal screens are typically punched to meshes from stainless steel, aluminum, low carbon steel, alloy aluminum metal sheets or coils. Wuzhou Kingda supply either fully perforated or with margins and/or blank areas, perforated metal screens can be produced to meet your design and production requirements.
2. Characteristics of perforated metal screens: it has the character of winding-resisting, ageing-resisting, flat and smooth surface which is strong and serviceable.
3. Application of Perforated metal screens:
Perforated metal screens can control the passage of air, liquid, light, solids, heat, electromagnetic waves, and sound waves and they are often found in the following applications:
Dryer drums
Speaker covers
Automotive grills
Exhaust components
Airplane engine silencers
Grain dryers
Microwave ovens
Computer cabinets
Window and door security screen
Architectural decorative ceilings and facades, panels, etc.

Reference specifications of Perforated metal screens:

Plate Material	Thickness of Metal (mm)	Hole Dia. (mm)	Pitch (mm)	Sheet Width (m)	Sheet Length (m)	Porosity (%)	Weight (kg/m2)
Rolling plate	0.2	6	2	1	20	44	0.88
	0.35	5	4	1	20	24	2
	0.45	6	3	1	20	35	2.5
	0.8	3	3	1	20	19.6	3
Flat plate	0.5	1	1	1	2	19.6	3.14
	0.55	1.1	2.2	1	2	22.67	3.411
	0.55	1.5	2.8	1	2	26.03	3.268
	0.8	1.5	1.5	1	2	19.6	5
	0.8	2.0	3.4	1	2	30.78	4.465
	1.5	2	2	1	2	19.6	9.4
	1.5	5.0	8.0	1	2	35.39	7.843
	3	5	16	1	2	19.6	18.8
Stainless steel plate	0.5	1	1	1	2	19.6	3.14
	0.8	1.5	1.5	1	2	19.6	5
	1	2	2	1	2	19.6	6.28
	2	5	16	1	2	19.6	6.28
Aluminum plate	0.5	1	1	1	2	19.6	1.08
	0.8	3	3	1	2	19.6	1.72
	1.6	2	2	1	2	19.6	3.24
	3	4	16	1	2	19.6	4.23
