Perforated stainless steel screen

Category:Perforated Metal Mesh
Material:stainless steel plate
Properties:elegant appearance, high precision, small deviation and good quality
Application:Widely applies in the chemical machinery, the drugs manufacture equipment, food drink machinery

tags:
perforated screen,perforated sheet,

Inquiry now

Send email

We highly appreciate your feedback. TEL: 0086-10-68220585 E-mail: sales@kingdamesh.com

Mesh Description
Mesh Specification
Relevant Picture
Recommend Products

Perforated stainless steel screen
Specifications:
1) Production technology: punch forming
2) Material: stainless steel plate
3) Plate thickness: 5-10mm
4) Aperture: 0.4-100mm
5) Hole pattern: round, square, triangle, diamond, oval, hexagon and so on
Features of the perforated stainless steel screen:
Sturdy and durable, elegant appearance, high precision, small deviation and good quality
Characteristics of the perforated stainless steel screen:
Flat surface, smooth, beautiful, durable and has a wide range of application.
Applications of the perforated stainless steel screen:
Widely applies in the chemical machinery, the drugs manufacture equipment, food drink machinery, the cigarette machinery, the harvester, dry cleans machine etc

If you are interested, please feel free to contact the following: TEL: 0086-10-68285557 E-mail: service.wzjd@hotmail.com

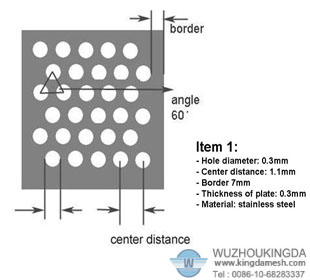

Reference specifications of the perforated stainless steel screen:

Specifications of the perforated screen
material	thickness	Aperture	hole spacing	wide	length	punching rate	weight
material	(mm)	(mm)	(mm)	(m)	(m)	(%)	(kg/m2)
Coil sheet	0.2	6	2	1	20	44	0.88
	0.35	5	4	1	20	24	2
	0.45	6	3	1	20	35	2.5
	0.8	3	3	1	20	19.6	3
Flat sheet	0.5	1	1	1	2	19.6	3.14
	0.8	1.5	1.5	1	2	19.6	5
	1.5	2	2	1	2	19.6	9.4
	3	5	16	1	2	19.6	18.8
stainless metal plate	0.5	1	1	1	2	19.6	3.14
	0.8	1.5	1.5	1	2	19.6	5
	1	2	2	1	2	19.6	6.28
	2	5	16	1	2	19.6	6.28
aluminum plate	0.5	1	1	1	2	19.6	1.08
	0.8	3	3	1	2	19.6	1.72
	1.5	2	2	1	2	19.6	3.24
	2	4	16	1	2	19.6	4.23
