Round Hole Stainless Steel Perforated sheet,Stainless steel perforated mesh,Perforated metal-Wuzhou Kingda Wire Cloth Co. Ltd

Round hole stainless steel perforated sheet

Category:Perforated Metal Mesh
Material:SUS302, 304, 304L, 316, 316L stainless steel plate
Properties:perforated mesh
Application:widely used in the core of filter, filtering, and mechanical protecting.

tags:
round hole,stainless steel,perforated sheet,

Inquiry now

Send email

We highly appreciate your feedback. TEL: 0086-10-68220585 E-mail: sales@kingdamesh.com

Mesh Description
Mesh Specification
Relevant Picture
Recommend Products

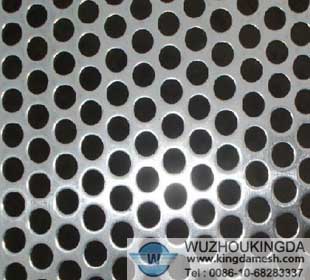

Round Hole Stainless Steel Perforated sheet
1.thickness:1-2mm
2.width:1-1.25m, length: 2-2.5m

Stainless steel perforated mesh
1. Materials: SUS302, 304, 304L, 316, 316L stainless steel plate
2. Hole shape: round, length, square, scale hole, hexagonal hole, plum blossom and so on.
3. Characteristics:
Can be readily formed, easy installation, Can be painted or polished and anodizing.
The thickness of materials is wide range from 0.3mm-8mm.
Largest selection of hole size patterns and configurations
Uniform sound abatement(aluminum perforated metal)
Attractive appearance, Light weight, Durable
4. Application: Perforated metal is widely used in the core of filter, filtering, breed, making the crafts, the meshes for the high-grade sound box, decoration, and the seats for children.

Perforated metal Packing details:
Wooden pallets: Less than 1 ton (about 100 sheets) per pallet or according to the customers’ request.

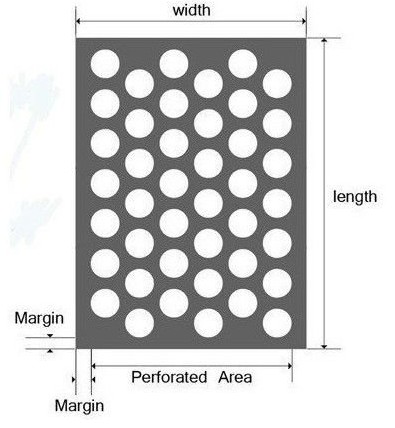

Plate Material	Thickness of Metal (mm)	Hole Dia. (mm)	Pitch (mm)	Sheet Width (m)	Sheet Length (m)	Porosity (%)	Weight (kg/m2)
Rolling plate	0.2	Ø 6	2	1	20	44	0.88
	0.35	Ø 5	4	1	20	24	2
	0.45	Ø 6	3	1	20	35	2.5
	0.8	Ø 3	3	1	20	19.6	3
Flat plate	0.5	Ø 1	1	1	2	19.6	3.14
	0.55	1.1	2.2	1	2	22.67	3.411
	0.55	1.5	2.8	1	2	26.03	3.268
	0.8	Ø 1.5	1.5	1	2	19.6	5
	0.8	Ø 2.0	3.4	1	2	30.78	4.465
	1.5	Ø 2	2	1	2	19.6	9.4
	1.5	5.0	8.0	1	2	35.39	7.843
	3	Ø 5	16	1	2	19.6	18.8
Stainless steel plate	0.5	Ø 1	1	1	2	19.6	3.14
	0.8	Ø 1.5	1.5	1	2	19.6	5
	1	Ø 2	2	1	2	19.6	6.28
	2	Ø 5	16	1	2	19.6	6.28
Aluminum plate	0.5	Ø 1	1	1	2	19.6	1.08
	0.8	Ø 3	3	1	2	19.6	1.72
	1.6	Ø 2	2	1	2	19.6	3.24
	3	Ø 4	16	1	2	19.6	4.23
