micro perforated plate,perforated sheet,perforated metal-Wuzhou Kingda Wire Cloth Co. Ltd

micro perforated plate

Category:Perforated Metal Mesh
Material:stainless steel board, aluminum board
Properties:perforated mesh
Application:used to civil construction, mechanical device protection, handicraft manufacture.

tags:
micro perforated plate,perforated sheet,perforated metal,

Inquiry now

Send email

We highly appreciate your feedback. TEL: 0086-10-68220585 E-mail: sales@kingdamesh.com

Mesh Description
Mesh Specification
Relevant Picture
Recommend Products

micro perforated plate
Material: stainless steel board, aluminum board, cold and hot steel board, copper plate and fiberboard, plastic board and so on.
Perforated sheet
Uses: be used to civil construction, mechanical device protection, handicraft manufacture, upscale sound heart cover, grain ventilates.
It also can be used in architectural, the road, and the bridge. The product quality has achieved the national standard and the profession examination standard.
Feature: light weight, skid prevention and artistic
Perforated metal

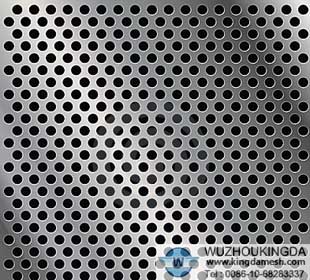

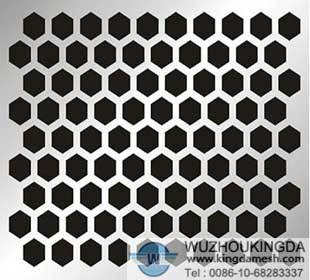

Shape: long square hole, square hole, round hole, triangle hole, hexagonal hole, the plum blossom hole, scale hole and other different kinds of hole. The company can process the different kinds of type according to the customer order.

If you are interested, pls. feel free to contact us. Tel: 0086-10-68285557 Email: service.wzjd@hotmail.com

Material	Thickness of Metal(mm)	Hole Dia.(mm)	Pitch(mm)	Sheet Width(m)	Sheet Length(m)	Porosity (%)	Weight (kg/m2)
Rolling Plate	0.2	6	2	1	20	44	0.88
	0.35	5	4	1	20	24	2
	0.45	6	3	1	20	35	2.5
	0.8	3	3	1	20	19.6	3
Flat plate	0.5	1	1	1	20	19.6	3.14
	0.55	1.1	2.2	1	20	22.67	3.411
	0.55	1.5	2.8	1	20	26.03	3.268
	0.8	1.5	1.5	1	20	19.6	5
	0.8	20	3.4	1	20	30.78	4.465
	1.5	2	2	1	20	19.6	9.4
	1.5	5	8	1	20	35.39	7.843
	3	5	16	1	20	19.6	18.8
