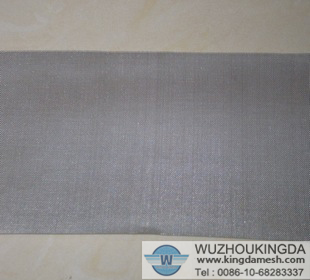

100x90 Mesh T304 Stainless steel wire mesh
1. Introduction:
Stainless steel mesh is a woven fabric that is normally made from T316 stainless steel wire. It has various applications throughout the industrial market and the domestic market.
2. T304Stainless steel wire mesh Characteristics:
High tension
Low elongation
High flexibility
High corrosion resistance
Non-electrostatic
Wear resistance
3. Weave pattern of T304 Stainless steel wire mesh:
Plain Weave Stainless Steel Wire Mesh: Stainless Steel Wire Mesh can be divided into Plain Weave, Twill Weave and Dutch Weave according to difference of weaving types. Stainless Steel Wire Mesh Plain weave is the most commonly used weave. Each warp wire crosses alternately above and below each weft wire. Warp and weft wires generally have the same diameter.
Twill Weave Stainless Steel Wire Mesh: Each weft wire passes alternately over two, and then under two successive warp wires and each warp wire passes alternately over two and under two successive weft wires. It is possible to be used to allow a heavier than standard wire diameter.
Dutch Weave Stainless Steel Wire Mesh: Dutch Twill Woven Wire Cloth offers higher strength than regular Dutch woven wire cloth. It packs even more wires in a given area than Dutch plain woven wire cloth. Generally, Dutch Twill Woven Wire Cloth offers finer mesh counts and lower flow than other Dutch Woven Wire Cloth and can be made to filter particles as fine as 2 microns in diameter.
Dutch Plain Woven Wire Cloth is primarily used as filter cloth. This kind of woven wire cloth has a coarser mesh and wire in the warp direction and a finer mesh and wire in the weft direction. Dutch Plain Woven Wire Cloth makes an ideal filter cloth with a very compact, firm mesh with great strength.
4. Usage of T304 Stainless steel wire mesh:
It is widely used as mud network in oil, as screen filter in chemical, as pickling network in plating, as accessory network in light industry, telecommunication and also used for scientific purpose.

Common specifications of T304 Stainless steel wire mesh as follows:

Mesh	Wire dia.		Aperture		Opening area (%)	Weight (lb)/ 100sq.ft.
	inch	mm	inch	mm
1x1	0.08	2.03	0.92	23.37	84.6	41.1
2x2	0.063	1.6	0.437	11.1	76.4	51.2
3x3	0.054	1.37	0.279	7.09	70.1	56.7
4x4	0.063	1.6	0.187	4.75	56	104.8
4x4	0.047	1.19	0.203	5.16	65.9	57.6
5x5	0.041	1.04	0.159	4.04	63.2	54.9
6x6	0.035	0.89	0.132	3.35	62.7	48.1
8x8	0.028	0.71	0.097	2.46	60.2	41.1
10x10	0.025	0.64	0.075	1.91	56.3	41.2
10x10	0.02	0.51	0.08	2.03	64	26.1
12x12	0.023	0.584	0.06	1.52	51.8	42.2
12x12	0.02	0.508	0.063	1.6	57.2	31.6
14x14	0.023	0.584	0.048	1.22	45.2	49.8
14x14	0.02	0.508	0.051	1.3	51	37.2
16x16	0.018	0.457	0.0445	1.13	50.7	34.5
18x18	0.017	0.432	0.0386	0.98	48.3	34.8
20x20	0.02	0.508	0.03	0.76	36	55.2
20x20	0.016	0.406	0.034	0.86	46.2	34.4
24x24	0.014	0.356	0.0277	0.7	44.2	31.8
30x30	0.013	0.33	0.0203	0.52	37.1	34.8
30x30	0.012	0.305	0.0213	0.54	40.8	29.4
30x30	0.009	0.229	0.0243	0.62	53.1	16.1
35x35	0.011	0.279	0.0176	0.45	37.9	29
40x40	0.01	0.254	0.015	0.38	36	27.6
50x50	0.009	0.229	0.011	0.28	30.3	28.4
50x50	0.008	0.203	0.012	0.31	36	22.1
60x60	0.0075	0.191	0.0092	0.23	30.5	23.7
60x60	0.007	0.178	0.0097	0.25	33.9	20.4
70x70	0.0065	0.165	0.0078	0.2	29.8	20.8
80x80	0.0065	0.165	0.006	0.15	23	23.2
80x80	0.0055	0.14	0.007	0.18	31.4	16.9
90x90	0.005	0.127	0.0061	0.16	30.1	15.8
100x100	0.0045	0.114	0.0055	0.14	30.3	14.2
100x100	0.004	0.102	0.006	0.15	36	11
100x100	0.0035	0.089	0.0065	0.17	42.3	8.3
110x110	0.004	0.1016	0.0051	0.1295	30.7	12.4
120x120	0.0037	0.094	0.0064	0.1168	30.7	11.6
150x150	0.0026	0.066	0.0041	0.1041	37.4	7.1
160x160	0.0025	0.0635	0.0038	0.0965	36.4	5.94
180x180	0.0023	0.0584	0.0033	0.0838	34.7	6.7
200x200	0.0021	0.0533	0.0029	0.0737	33.6	6.2
250x250	0.0016	0.0406	0.0024	0.061	36	4.4
270x270	0.0016	0.0406	0.0021	0.0533	32.2	4.7
300x300	0.0015	0.0381	0.0018	0.0457	29.7	3.04
325x325	0.0014	0.0356	0.0017	0.0432	30	4.4
400x400	0.001	0.0254	0.0015	0.37	36	3.3
500x500	0.001	0.0254	0.001	0.0254	25	3.8
635x635	0.0008	0.0203	0.0008	0.0203	25	2.63

•
