Woven wire mesh,Woven wire mesh supplier-Wuzhou Kingda Wire Cloth Co. Ltd

Woven wire mesh

Category:Stainless Steel Wire Mesh
Material:Stainless steel wire
Properties:Woven Wire Mesh
Application:Industrial Estates,Commercial premises and other places

tags:
Woven wire mesh,Woven mesh,wire mesh,

Inquiry now

Send email

We highly appreciate your feedback. TEL: 0086-10-68220585 E-mail: sales@kingdamesh.com

Mesh Description
Mesh Specification
Relevant Picture
Recommend Products

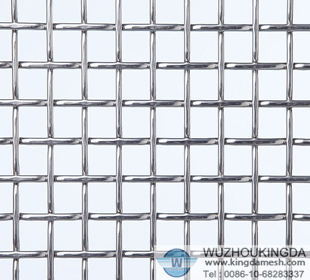

Woven wire mesh
1. Material: Woven wire mesh is made of stainless steel wire, aluminum wire, brass wire, annealed wire and so on. Stainless steel wire is the best material with the characteristics of wear-proof, strong structure, and the lifetime of using.
2. Woven wire mesh features:
High strength and hardness
Excellent corrosion resistance
Resistant to chloride stress corrosion
Good resistance to impingement attack
High fatigue strength in seawater
Low magnetic permeability
3. Woven wire mesh application:
3.1 Chemical Process Industry: Processes involving organic acids, caustic soda and dry chlorine. Woven wire mesh used in the production of chlorinated plastics.
3.2 Applications include doctor blades and scrapers.
3.3 Marine Industry and Shipbuilding: Propellers and Shafts, Fasteners, Gyroscopes
Oil and Gas Industry: Pump shafts, Valve stems, Drill collars

Reference specifications of Woven wire mesh:

Mesh/Inch	Wire Gauge(SWG)	Aperture in mm
3mesh x 3mesh	14	6.27
4mesh x 4mesh	16	4.27
5mesh x 5mesh	18	3.86
6mesh x 6mesh	18	3.04
8mesh x 8mesh	20	2.26
10mesh x 10mesh	20	1.63
20mesh x 20mesh	30	0.95
30mesh x 30mesh	34	0.61
40mesh x 40mesh	36	0.44
50mesh x 50mesh	38	0.36
60mesh x 60mesh	40	0.30
80mesh x 80mesh	42	0.21
100mesh x 100mesh	44	0.172
120mesh x 120mesh	44	0.13
150mesh x 150mesh	46	0.108
160mesh x 160mesh	46	0.097
180mesh x 180mesh	47	0.09
200mesh x 200mesh	47	0.077
250mesh x 250mesh	48	0.061
280mesh x 280mesh	49	0.060
300mesh x 300mesh	49	0.054
350mesh x 350mesh	49	0.042
400mesh x 400mesh	50	0.0385
Roll width: 2'-8'
