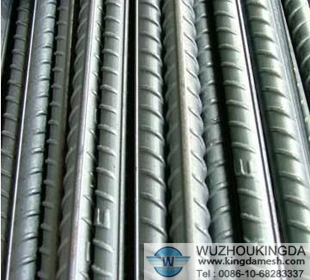

Ribbed steel bar welded mesh
1. Introduction:
We offer heavy type welded wire mesh panels including Ribbed steel bar welded mesh. Wuzhou Kingda specializes in producing ribbed steel bar welded mesh for reinforcement as top manufacturer of welded bar grating in North China. Our products have high precision, small difference and good quality. Ribbed steel bar welded mesh is a kind of mesh type bar grating with the vertical and horizontal bars respectively welded together to a certain pitch and arranged at right angles to each other.
2. Application: Ribbed steel bar welded mesh is well received and popularly used as a kind of new, efficient and excellent quality concrete structure steel materials in various industrial and civil buildings. It is mainly used in making of floors, ceilings, wall body, concrete road, bridge surface, airport, tunnel lining, concrete piping, etc.
3. Features: Welded steel is the same or different diameters of the vertical and horizontal steel bars were arranged vertically in a certain pitch, all crossing points are formed together with the resistance spot welding of steel mesh. Is directly welded in the factory steel mesh molded products to replace the hand-stretched steel bar, is a new, high efficiency, energy saving, construction material, reinforced concrete structure. Reinforced by steel bars welded into a different type of hot-rolled (I, II, III) welded steel, cold drawn steel bars welded smooth muscle network, cold-rolled ribbed steel bars welded.
4. In construction, because the steel nets are computer-controlled welding procedures to ensure the welding quality and steel pitch stability, without loss of steel strength and cross-sectional area of the original.
Strengthen the steel welding net advantages:
With my company's cold-rolled ribbed steel bars welded with traditional workers bandage reinforced (carbon steel bar), compared with the following advantages: (1) to save more than 33% of steel, reducing costs 10% -30%; ( 2) increase the speed of construction can shorten the duration of about 80%; (3) to improve the quality of engineering structures, and concrete bonding anchoring reliable, smooth reinforcement bond strength equal to three times more, and the overall good, deviation is small, anti - cracking performance above 75%.

Technical Information of Ribbed steel bar welded mesh:

	Fabric	Mesh Size Nominal Pitch of wire	Wire Sizes	Cross Sectional area/m width	Nominal mass/m2	Sheets only 6m x 2.4m
Ref No.	Main mm	Cross mm	Main mm	Cross mm	Main mm	Cross mm
Square Mesh Fabric	888	200	200	12	12	566
746	200	200	11	11	475	475
617	200	200	10	10	393	393
500	200	200	9	9	318	318
395	200	200	8	8	251	251
311	200	200	7.1	7.1	198	198
245	200	200	6.3	6.3	156	156
193	200	200	5.6	5.6	123	123
100	200	200	4	4	63	63
Design Mesh Fabric	1085	100	200	12	8	1131
943	100	200	11	8	951	251
772	100	200	10	7.1	786	198
655	100	200	9	7.1	636	198
517	100	200	8	6.3	503	156
433	100	200	7.1	6.3	396	156
341	100	200	6.3	5.6	312	123
289	100	200	5.6	5.6	246	123
Longitudinal Mesh Fabric	278	100	300	6.3	4	312
226	100	300	5.6	4	246	42
133	100	300	4	4	126	42
Special Mesh	200	100	100	4	4	126
156	100	100	3.55	3.55	99	99

•
