Round hole perforated metal panel

Category:Perforated Metal Mesh
Material:low carbon steel sheet, stainless steel sheet, aluminum sheet
Properties:winding-resisting, aging-resisting, corrosion-resisting
Application:sound reduction, weight saving, air control

tags:
perforated metal panel,perforated metal mesh,

Inquiry now

Send email

We highly appreciate your feedback. TEL:0086-10-68283337 TEL: 0086-10-68283337 E-mail: sales@kingdamesh.com

Mesh Description
Mesh Specification
Relevant Picture
Recommend Products

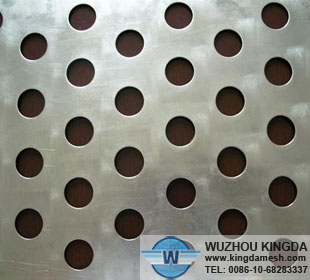

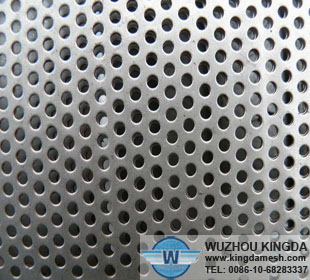

Round hole perforated metal panel
Material: low carbon steel sheet, stainless steel sheet, aluminum sheet
Surface treatment: galvanized, PVC coated
Specifications of the round hole perforated metal panel:
Plate thickness: 0.1mm-10.0mm
Hole diameter: 0.5mm-100mm
Hole shape: round
Width*length: 1m*2m, 1.22*2.44m, 2m*2.5m, 2m*3m and so on.
Features of the round hole perforated metal panel:
The round hole perforated metal is punched to meshes, winding-resisting, aging-resisting, corrosion-resisting; the top of meshes in smooth, and it is strong and durable.
Applications of the round hole perforated metal panel:
The Perforated sheets can be used with advantage in many situations, for instance when requiring sound reduction, weight saving, air control, filtering, a decorative surface, or simply a non-skid effect.

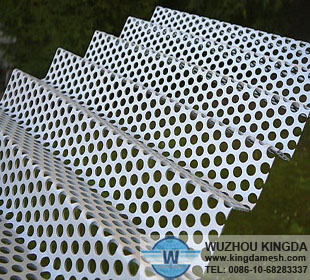

Based on their many qualities, perforated sheets are well suited for sorting, facades, ceilings, lamps, shelves, shielding, and steps and of course many other purposes as well.

If you are interested in our products, please feel free to contact us. TEL: 0086-10-68283337. Email: sales.wzjd@gmail.com

Reference specifications of the round hole perforated metal panel：

Sheet Thickness (mm)	Opening in Width (mm)	Opening in Length (mm)	Stem (mm)	Roll Width (mm)	Roll Length (mm)	Weight (kg/m2)
0.5	2.5	4.5	0.5	0.5	1	1.8
0.5	10	25	0.5	0.6	2	0.73
0.6	10	25	1	0.6	2	1
0.8	10	25	1	0.6	2	1.25
1	10	25	1.1	0.6	2	1.77
1	15	40	1.5	2	4	1.85
1.2	10	25	1.1	2	4	2.21
1.2	15	40	1.5	2	4	2.3
1.5	15	40	1.5	1.8	4	2.77
1.5	23	60	2.6	2	3.6	2.77
2	18	50	2.1	2	4	3.69
2	22	60	2.6	2	4	3.69
3	40	80	3.8	2	4	5.00
4	50	100	4	2	2	11.15
4.5	50	100	5	2	2.7	11.15
5	50	100	5	1.4	2.6	12.39
6	50	100	6	2	2.5	17.35
8	50	100	8	2	2.1	28.26
