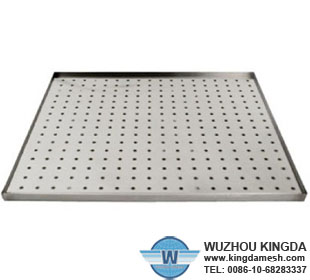

Square hole perforated panel

Category:Perforated Metal Mesh
Material:Stainless Steel Plate, low carbon steel plate
Properties:Light weight, good rigidity and strength
Application:For decoration, screening, separation, sifting, filtration

tags:
perforated panel,perforated metal mesh,

Inquiry now

Send email

We highly appreciate your feedback. TEL:0086-10-68283337 TEL: 0086-10-68283337 E-mail: sales@kingdamesh.com

Mesh Description
Mesh Specification
Relevant Picture
Recommend Products

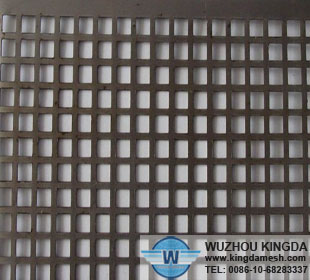

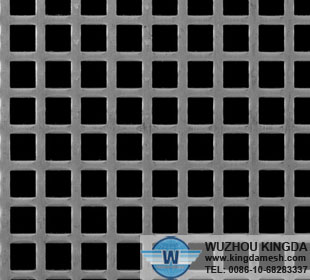

Square hole perforated panel
Material: Aluminum Plate, Stainless Steel Plate, low carbon steel plate
Surface treatment: powder coated, PVC coated, galvanized
Features of the square hole perforated panel:
Light weight, good rigidity and strength
Non-flammable, good fire resistance
Excellent UV resistance, excellent weather resistance of surface, superior resistance to acid and alkali
Applications of the square hole perforated panel:
Square holes can be supplied with parallel rows, diagonal rows or staggered rows. In addition, square hole perforations allow a high open area for applications such as ventilation and guards.
For decoration, screening, separation, sifting, filtration, drying, cooling, cleaning and other specifications in civil construction, mechanical device protection, handicraft, cover, road, bridge, step etc.

If you are interested in our products, please feel free to contact us. TEL: 0086-10-68283337. Email: sales.wzjd@gmail.com

Reference specifications of the square hole perforated panel:

Plate Material	Thickness of Metal (mm)	Hole Dia. (mm)	Pitch (mm)	Sheet Width (m)	Sheet Length (m)	Porosity (%)	Weight (kg/m2)
Rolling plate	0.2	6	2	1	20	44	0.88
	0.35	5	4	1	20	24	2
	0.45	6	3	1	20	35	2.5
	0.8	3	3	1	20	19.6	3
Flat plate	0.5	1	1	1	2	19.6	3.14
	0.55	1.1	2.2	1	2	22.67	3.411
	0.55	1.5	2.8	1	2	26.03	3.268
	0.8	1.5	1.5	1	2	19.6	5
	0.8	2.0	3.4	1	2	30.78	4.465
	1.5	2	2	1	2	19.6	9.4
	1.5	5.0	8.0	1	2	35.39	7.843
	3	5	16	1	2	19.6	18.8
Stainless steel plate	0.5	1	1	1	2	19.6	3.14
	0.8	1.5	1.5	1	2	19.6	5
	1	2	2	1	2	19.6	6.28
	2	5	16	1	2	19.6	6.28
Aluminum plate	0.5	1	1	1	2	19.6	1.08
	0.8	3	3	1	2	19.6	1.72
	1.6	2	2	1	2	19.6	3.24
	3	4	16	1	2	19.6	4.23
